MC100LVEL17DW

Number of Input Lines :
Number of Output Lines :
Polarity :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Max : +/- 3.8 V
Supply Voltage - Min : - 3 V, 3 V
Package / Case : SO-20 WB


Features:

` 325ps Propagation Delay
` High Bandwidth Output Transitions
`>2000V ESD Protection
` Operates from 3.3/4.5V (or +3.3/+5.0V) Supply

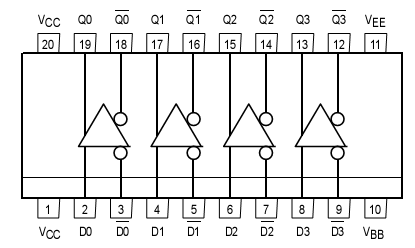

Pinout




Description

The MC100LVEL17 is a low-voltage, quad differential receiver. The MC100LVEL17 is functionally equivalent to the E116 device with the capability of operation from either a 3.3V or +3.3V supply voltage. The MC100EL17 is pin and functionally equivalent to the MC100LVEL17, but is specified for operation at the standard 100E ECL voltage supply.

The MC100LVEL17 provides a V_BB  output for either single-ended use or as a DC bias for AC coupling to the device. The V_BB pin should be used only as a bias for the LVEL17 as its current sink/source capability is limited. Whenever used, the V_BB   pin should be bypassed to ground via a 0.01 f  capacitor.

Under open input conditions, the D input will be biased at V_CC /2 and the D input of MC100LVEL17 will be pulled down to V_EE. This operation will force the Q output LOW and ensure stability.

Parameters:

Technical/Catalog Information	MC100LVEL17DW
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Differential Receiver
Mounting Type	Surface Mount
Package / Case	20-SOIC (7.5mm Width)
Supply Voltage	3 V ~ 3.8 V
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC100LVEL17DW MC100LVEL17DW MC100LVEL17DWOS ND MC100LVEL17DWOSND MC100LVEL17DWOS
