MC10175

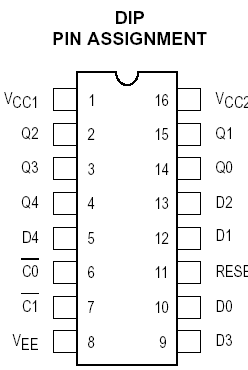

Pinout




Description

     The MC10175 is a high speed, low power quint latch. It features five D type latches with common reset and a common twoinput clock. Data is transferred on the negative edge of the clock and latched on the positive edge. The two clock inputs are "OR"ed together.

     Any change on the data input of MC10175 will be reflected at the outputs while the clock is low. The outputs are latched on the positive transition of the clock. While the clock of MC10175 is in the high state, a change in the information present at the data inputs will not affect the output information. The reset input is enabled only when the clock is in the high state.
