Purchase MC10E107, In-stock MC10E107 From SeekIC.
MFG:MOT Package Cooled:PLCC
Part Number: MC10E107
MFG: MOT
Package Cooled: PLCC
Description: The MC10E/100E107 is a quint 2-input XOR/XNOR gate. The function output F is the OR of all five XOR ou...
- Table of contents:
MC10E107
-
Suppliers
DataSheet
General Description
MC10E107 General Description
The MC10E/100E107 is a quint 2-input XOR/XNOR gate. The function output F is the OR of all five XOR outputs, while F is the NOR. The Q outputs need not be terminated if only the F outputs are to be used.
MC10E107 Features
• 600ps Max. Propagation Delay
• OR/NOR Function Outputs
• Extended 100E VEE Range of 4.2V to 5.46V
• 75kW Input Pulldown Resistors
• OR/NOR Function Outputs
• Extended 100E VEE Range of 4.2V to 5.46V
• 75kW Input Pulldown Resistors

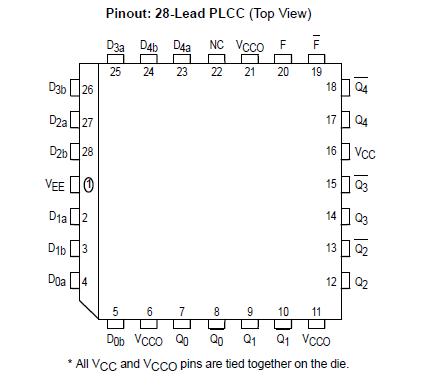

MC10E107 Connection Diagram
MC10E107
PDF/DataSheet Download
- Datasheet: MC10E107
- File Size: 67537 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
