Part Number: MC10E137
Description: The MC10E/100E137 is a very high speed binary ripple counter. The two least significant bits were desi...
- Table of contents:
MC10E137
-
Suppliers
DataSheet
General Description
MC10E137 General Description
The MC10E/100E137 is a very high speed binary ripple counter. The two least significant bits were designed with very fast edge rates while the more significant bits maintain standard ECLinPSE output edge rates. This allows the counter to operate at very high frequencies while mai ntaining a moderate power dissipation level.
MC10E137 Features
• 1.8GHz Minimum Count Frequency
• Differential Clock Input and Data Output Pins
• VBB Output for Single-Ended Use
• Internal 75kW Input Pulldown Resistors
• Synchronous and Asynchronous Enable Pins
• Asynchronous Master Reset
• Extended 100E VEE Range of 4.2V to 5.46V
• Differential Clock Input and Data Output Pins
• VBB Output for Single-Ended Use
• Internal 75kW Input Pulldown Resistors
• Synchronous and Asynchronous Enable Pins
• Asynchronous Master Reset
• Extended 100E VEE Range of 4.2V to 5.46V

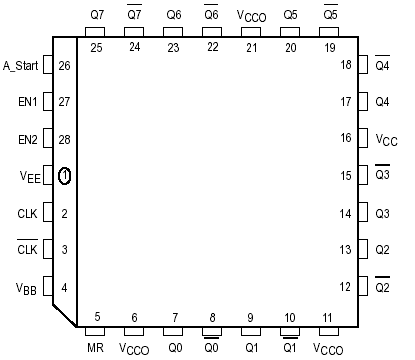

MC10E137 Connection Diagram
MC10E137
PDF/DataSheet Download
- Datasheet: MC10E137
- File Size: 74248 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
