Part Number: MC10E143



MFG: MOT

Package Cooled: PLCC

D/C: OO

Description: • 700MHz Min. Operating Frequency• 9-Bit for Byte-Parity Applications• Asynchronous Master Re...


Urgent Purchase

MC10E143 General Description


• 700MHz Min. Operating Frequency
• 9-Bit for Byte-Parity Applications
• Asynchronous Master Reset
• Dual Clocks
• Extended 100E VEE Range of 4.2V to 5.46V
• 75k  Input Pulldown Resistors
The SEL (Select) input pin is used to switch between the two modes of operation - HOLD and LOAD. Input data is accepted by the registers a set-up time before the positive going edge of CLK1 or CLK2. A HIGH on the Master Reset pin (MR) asynchronously resets all the registers to zero.

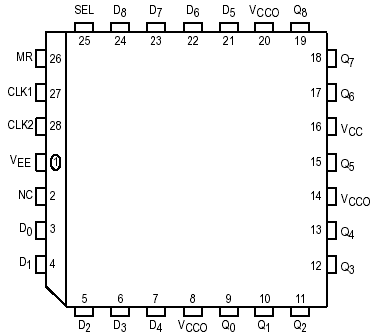

MC10E143 Connection Diagram

MC10E143 Connection Diagram
