Part Number: MC10E171
Description: The MC10E/100E171 contains three 4:1 multiplexers with differential outputs.Separate Select cont...
- Table of contents:
MC10E171
-
Suppliers
DataSheet
General Description
MC10E171 General Description
The MC10E/100E171 contains three 4:1 multiplexers with differential outputs. Separate Select controls are provided for the leading 2:1 mux pairs (see logic symbol). The three Select inputs control which one of the four data inputs in each case is propagated to the corresponding output.
MC10E171 Features
•725ps Max. D to Output
•Split Select
•Differential Outputs
•Extended 100E VEERange of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors
•Split Select
•Differential Outputs
•Extended 100E VEERange of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors

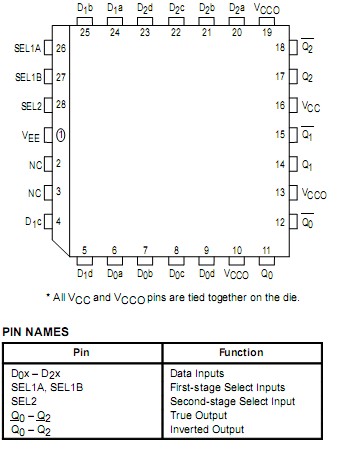

MC10E171 Connection Diagram
MC10E171
