Part Number: MC10EL04D



MFG: 2900

Package Cooled: MOT



Description: The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalentto the E104 device with highe...


Urgent Purchase

MC10EL04D General Description


The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalent to the E104 device with higher performance capabilities.With propagation delays and output transition times significantly faster than the E104 the EL04 is ideally suited for those applications which require the ultimate in AC performance.

MC10EL04D Features

•240ps Propagation Delay
•High Bandwidth Output Transitions
•75kΩ Internal Input Pulldown Resistors
•>1000V ESD Protection

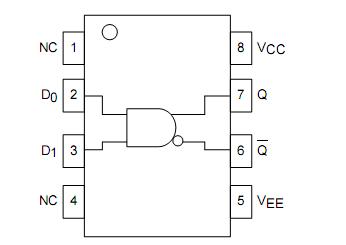

MC10EL04D Connection Diagram

MC10EL04D Connection Diagram
