MC10ELT20
-
Suppliers
DataSheet
General Description
MC10ELT20 General Description
The MC10ELT/100ELT20 is a TTL to differential ECL translator. Because PECL(Positive ECL) levels are used a +5V and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT20 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.
The ELT20 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
MC10ELT20 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND, VCC = 5.2V) | 7.0 | V |
| VEE | DC Supply Voltage (Referenced to GND, VCC = 5.0V) | 8.0 | V |
| VIN | Input Voltage | 40 to VCC | V |
| IOUT | Current Applied to Output in Low Output State Continuous Surge |
50 100 |
mA |
| TA | Operating Temperature Range (In Free-Air) | 40 to 85 | °C |
| TSTG | Storage Temperature Range | 55 to +150 | °C |
MC10ELT20 Features
• 1.5ns Typical Propagation Delay
• Differential PECL Outputs
• Small Outline SOIC Package
• PNP TTL Inputs for Minimal Loading
• Flow Through Pinouts
• Differential PECL Outputs
• Small Outline SOIC Package
• PNP TTL Inputs for Minimal Loading
• Flow Through Pinouts

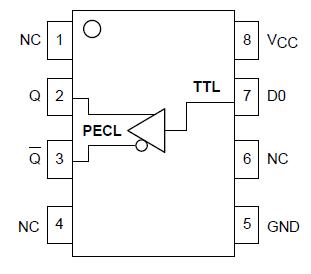

MC10ELT20 Connection Diagram
MC10ELT20
