Part Number: MC10EP101









Description: The MC10EP101 is a Quad 4input OR/NOR gate. The device is functi...


Urgent Purchase

MC10EP101 General Description


The MC10EP101 is a Quad 4input OR/NOR gate. The device is functionally equivalent to the E101. With AC performance faster than the E101 device, the EP101 is ideal for applications requiring the fastest AC performance available. All VCC  and Veens must be externally connected to power supply to guarantee proper operation

MC10EP101 Maximum Ratings

Symbol
Parameter
Value
Unit
VEE Power Supply (VCC= 0V) 6.0 to 0
VDC
VCC Power Supply (VEE= 0V) 6.0 to 0 VDC
VI Input Voltage (VCC= 0V, VI
not more negative than VEE)		 6.0 to 0 VDC
VI Input Voltage (VEE= 0V, VInot more positive than VCC) 6.0 to 0 VDC
Iout

Output Current Continuous

Surge

50
100		 mA
TA Operating Temperature Range 40 to +85
Tstg Storage Temperature 65 to +150
JA

Thermal Resistance (Junctionto Ambient)Still Air

500lfpm

 80
55		 /W
JC Thermal Resistance (JunctiontoCase) 12 to 17 /W
Tsol

Solder Temperature (<2 to 3 Seconds: 245°C desired)

 265

MC10EP101 Features

•250ps Typical Propagation Delay
•High Bandwidth to 3 Ghz Typical
•PECL mode: 3.0V to 5.5V VCC with VEE = 0V
•ECL mode: 0V VCC with VEE = 3.0V to 5.5V
•75kΩ Internal Input Pulldown Resistors
•ESD Protection: >4KV HBM, >100V MM
•Moisture Sensitivity Level 2For Additional Information, See Application Note AND8003/D
•Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
•Transistor Count = 173 devices

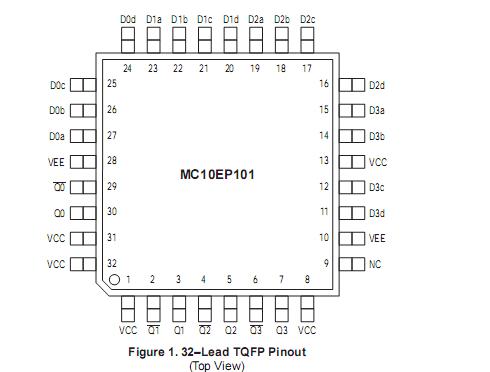

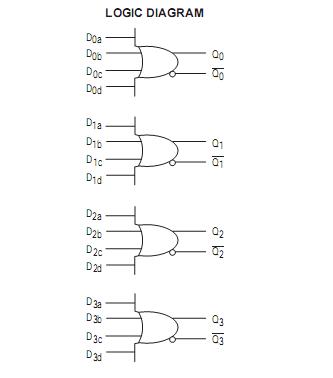

MC10EP101 Connection Diagram

MC10EP101 Connection DiagramMC10EP101 Connection Diagram
