Part Number: MC10EP116
Description: The MC10EP116/100EP116 is a 6-bit differential line receiver based on the EP16 device. The 3.0GHz band...
- Table of contents:
MC10EP116
-
Suppliers
DataSheet
General Description
MC10EP116 General Description
The MC10EP116/100EP116 is a 6-bit differential line receiver based on the EP16 device. The 3.0GHz bandwidth provided by the high frequency outputs makes the device ideal for buffering of very high speed oscillators.
A VBB pin is available to AC couple an input signal to the device.More information on AC coupling can be found in the design handbook interfacing with ECLinPS on our website.The design incorporates two stages of gain, internal to the device, making it an excellent choice for use in high bandwidth amplifierapplications.
MC10EP116 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VEE | Power Supply (VCC= 0V) | 6.0 to 0 | VDC |
| VCC | Power Supply (VEE= 0V) | 6.0 to 0 | VDC |
| VI | Input Voltage (VCC= 0V, VInot more negative than VEE) | 6.0 to 0 | VDC |
| VI | Input Voltage (VEE= 0V, VInot more positive than VCC) | 6.0 to 0 | VDC |
| Iout |
Output Current Continuous |
50 100 |
mA |
| IBB | VBBSink/Source Current | ±0.5 | mA |
| TA | Operating Temperature Range | 40 to +85 | °C |
| Tstg | Storage Temperature | 65 to +150 | °C |
| JA | Thermal Resistance (JunctiontoAmbient)Still Air 500lfpm |
80 55 |
°C/W |
| JC | Thermal Resistance (JunctiontoCase) | 12 to 17 | °C/W |
| Tsol | Solder Temperature (<2 to 3 Seconds: 245°C desired) | 265 | °C |
MC10EP116 Features
•230ps Typical Propagation Delay
•High Bandwidth to 3.0 GHz Typical
•PECL mode: 3.0V to 5.5V VCC with VEE = 0V
•ECL mode: 0V VCC with VEE = 3.0V to 5.5V
•Internal Input Resistors: Pulldown on D, Pulldown and Pullup on D
•Q Output will default LOW with inputs open or at VEE
•ESD Protection: 2KV HBM, 100V MM
•VBB Output
•New Differential Input Common Mode Range
•Moisture Sensitivity Level 2For Additional Information, See Application Note AND8003/D
•Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
•Transistor Count: 729 devices
•High Bandwidth to 3.0 GHz Typical
•PECL mode: 3.0V to 5.5V VCC with VEE = 0V
•ECL mode: 0V VCC with VEE = 3.0V to 5.5V
•Internal Input Resistors: Pulldown on D, Pulldown and Pullup on D
•Q Output will default LOW with inputs open or at VEE
•ESD Protection: 2KV HBM, 100V MM
•VBB Output
•New Differential Input Common Mode Range
•Moisture Sensitivity Level 2For Additional Information, See Application Note AND8003/D
•Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
•Transistor Count: 729 devices

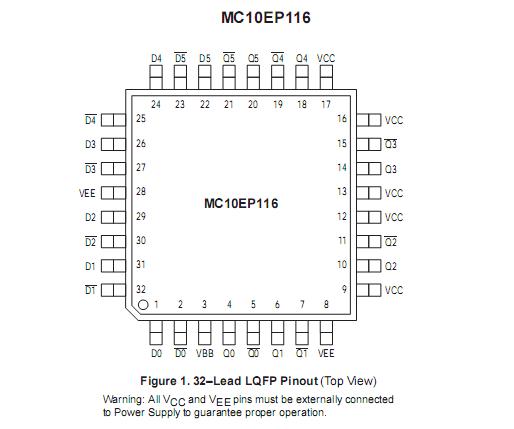

MC10EP116 Connection Diagram
MC10EP116
