General Description
MC10EP58 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VEE |
Power Supply (VCC = 0V) |
-6.0 to 0 |
VDC |
|
VCC |
Power Supply (VEE = 0V) |
6.0 to 0 |
VDC |
|
VI |
Input Voltage (VCC = 0V, VI not more negative than VEE) |
-6.0 to 0 |
VDC |
|
VI |
Input Voltage (VEE = 0V, VI not more positive than VCC) |
6.0 to 0 |
VDC |
|
Iout |
Output Current Continuous Surge |
50 100 |
mA |
|
TA |
Operating Temperature Range |
40 to +85 |
|
|
Tstg |
Storage Temperature |
65 to +150 |
|
|
JA |
Thermal Resistance (JunctiontoAmbient) Still Air 500lfpm |
190 130 |
/W |
|
JC |
Thermal Resistance (JunctiontoCase) |
41 to 44 ± 5% |
/W |
|
Tsol |
Solder Temperature (<2 to 3 Seconds: 245°C desired) |
265 |
MC10EP58 Features
• 275ps Typical Propagation Delay
• High Bandwidth to 3 Ghz Typical
• PECL mode: 3.0V to 5.5V VCC with VEE = 0V
• ECL mode: 0V VCC with VEE = 3.0V to 5.5V
• 75kW Internal Input Pulldown Resistors
• Q Output will default LOW with inputs open or at VEE
• ESD Protection: >4KV HBM, >200V MM
• Moisture Sensitivity Level 1, Indefinite Time Out of Drypack.For Additional Information, See Application Note AND8003/D
• Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 41 devices
• High Bandwidth to 3 Ghz Typical
• PECL mode: 3.0V to 5.5V VCC with VEE = 0V
• ECL mode: 0V VCC with VEE = 3.0V to 5.5V
• 75kW Internal Input Pulldown Resistors
• Q Output will default LOW with inputs open or at VEE
• ESD Protection: >4KV HBM, >200V MM
• Moisture Sensitivity Level 1, Indefinite Time Out of Drypack.For Additional Information, See Application Note AND8003/D
• Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 41 devices

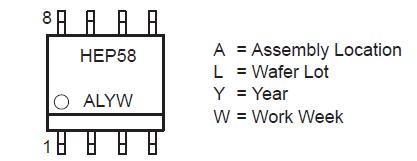

MC10EP58 Connection Diagram
