MC10EP58DR2
-
Suppliers
DataSheet
General Description
MC10EP58DR2 Maximum Ratings
|
Symbol |
Parameter |
Condition 1 |
Condition 2 |
Rating |
Units |
|
VCC |
PECL Mode Power Supply |
VEE = 0 V |
|
6 |
V |
|
VEE |
NECL Mode Power Supply |
VCC = 0 V |
|
-6 |
V |
|
VI |
PECL Mode Input Voltage NECL Mode Input Voltage |
VEE = 0 V VCC = 0 V |
VI VCC VI VEE |
6 -6 |
V |
|
Iout |
Output Current |
Continuous Surge |
|
50 100 |
mA mA |
|
IBB |
VBB Sink/Source |
|
|
± 0.5 |
mA |
|
TA |
Operating Temperature Range |
|
|
40 to +85 |
°C |
|
Tstg |
Storage Temperature Range |
|
|
65 to +150 |
°C |
|
JA |
Thermal Resistance (Junction to Ambient) |
0 LFPM 500 LFPM |
8 SOIC 8 SOIC |
190 130 |
°C/W °C/W |
|
JC |
Thermal Resistance (Junction to Case) |
std bd |
8 SOIC |
41 to 44 |
°C/W |
|
JA |
Thermal Resistance (Junction to Ambient) |
0 LFPM 500 LFPM |
8 TSSOP 8 TSSOP |
185 140 |
°C/W °C/W |
|
JC |
Thermal Resistance (Junction to Case) |
std bd |
8 TSSOP |
41 to 44 |
°C/W |
|
Tsol |
Wave Solder |
<2 to 3 sec @ 248°C |
|
265 |
°C |

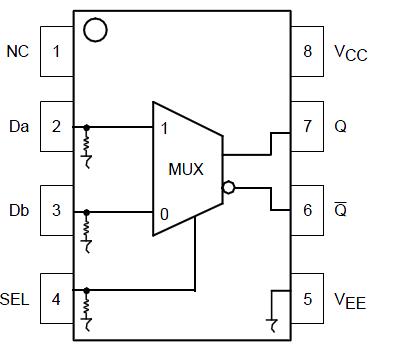

MC10EP58DR2 Connection Diagram
