MC10H100L

Logic Type: NOR Gate
Number of Inputs: 2
Number of Circuits: 4
Current - Quiescent (Max): -
Mounting Type: Through Hole
Packaging: Tube
Manufacturer: ON Semiconductor
Series: 10H
Voltage - Supply: -4.94 V ~ -5.46 V
Current - Output High, Low: 50mA, 50mA
Logic Level - Low: -1.48V
Logic Level - High: -1.13V
Operating Temperature: 0°C ~ 75°C
Features: Strobe
Max Propagation Delay @ V, Max CL: 1.7ns @ -5.2V, -
Supplier Device Package: 16-CDIP
Package / Case: 16-CDIP (0.300", 7.62mm)


Features:

•Propagation Delay, 1.0 ns Typical
•25 mW Typ/Gate (No Load)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

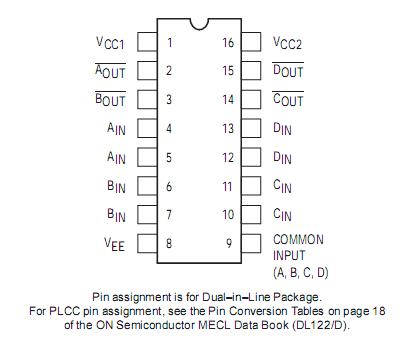

Pinout




Specifications

Characteristic	Symbol	Rating	Unit
PowerSupply (VCC= 0)	VEE	8.0 to 0	Vdc
InputVoltage (VCC= 0)	VI	0 to VEE	Vdc
Output Current- Continuous              - Surge	Iout	50 100	mA
Operating Temperature Range	TA	0 to +75
Storage Temperature Range- Plastic                       - Ceramic	Tstg	55 to +150 55 to +165

Description

The MC10H100 is a quad NOR gate. Each gate has 3 inputs, two of which are independent and one of which is tied common to all four gates.



Parameters:

Technical/Catalog Information	MC10H100L
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	16-CDIP (300 mil)
Logic Type	NOR Gate
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	2
Current - Output High, Low	50mA, 50mA
Supply Voltage	0 V ~ 5.2 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	0 V ~ 5.2 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC10H100L MC10H100L
