MC10H109 General Description


The MC10H109 is a dual 45input OR/NOR gate. This MECL 10H part is afunctional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in powersupply current.

MC10H109 Features

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 35 mW/Gate Typical (same as MECL 10K)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

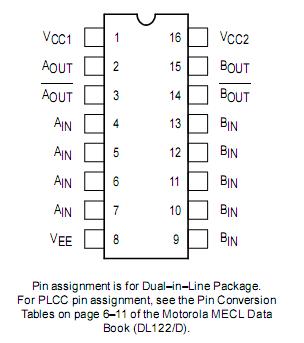

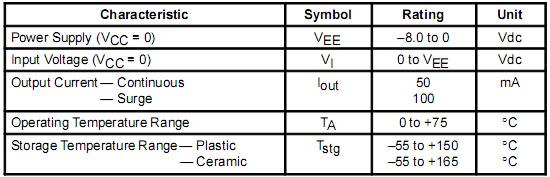

MC10H109 Connection Diagram

MC10H109 Connection Diagram

MC10H109 datasheet

MC10H109
PDF/DataSheet Download
