Part Number: MC10H113



MFG: MOT

Package Cooled: PLCC



Description: The MC10H113 is a Quad Exclusive OR Gate with an enable common to all four gates. The outputs may be wireORed tog...


Urgent Purchase

MC10H113 General Description


The MC10H113 is a Quad Exclusive OR Gate with an enable common to all four gates.  The outputs may be wireORed together to perform a 4bit comparison function (A = B).  The enable is active LOW.

MC10H113 Maximum Ratings

Characteristic
Symbol
Rating
Unit
PowerSupply (VCC= 0)
VEE
8.0 to 0
Vdc
InputVoltage (VCC= 0)
VI
0 to VEE
Vdc
Output Current- Continuous
                - Surge
Iout
50
100
mA
Operating Temperature Range
TA
0 to +75
Storage Temperature Range- Plastic
                              - Ceramic
Tstg
55 to +150
55 to +165

MC10H113 Features

•Propagation Delay, 1.3 ns Typical
•Power Dissipation 175 mW Typ/Pkg (No Load)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

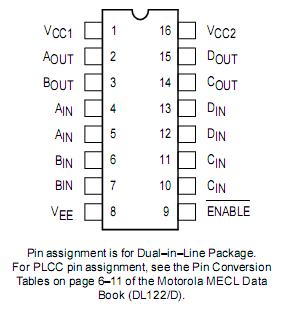

MC10H113 Connection Diagram

MC10H113 Connection Diagram

MC10H113 datasheet

MC10H113
PDF/DataSheet Download
