Part Number: MC10H117



MFG: mot

Package Cooled: PLCC



Description: The MC10H117 dual 2wide 23input ORAND/ORANDInvert gate is a general purpose logic element designed for use in data cont...


Urgent Purchase

MC10H117 General Description


The MC10H117 dual 2wide 23input ORAND/ORANDInvert gate is a general purpose logic element designed for use in data control, such as digital multiplexing or data distribution. Pin 9 is common to both gates. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in powersupply current.

MC10H117 Features

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 100 mW/Gate Typical (same as MECL 10K)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

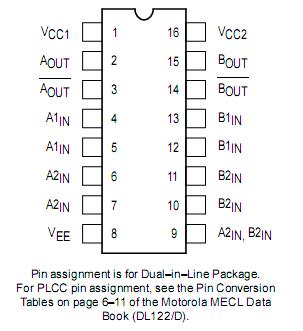

MC10H117 Connection Diagram

MC10H117 Connection Diagram

MC10H117 datasheet

MC10H117
PDF/DataSheet Download
