Part Number: MC10H124



MFG: MOT

Package Cooled: PLCC



Description: The MC10H124 is a quad translator for interfacing data and control signals between a saturated logic section and the ME...


Urgent Purchase

MC10H124 General Description


The MC10H124 is a quad translator for interfacing data and control signals between a saturated logic section and the MECL section of digital systems. The 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power−supply current.

MC10H124 Maximum Ratings

Symbol
Characteristic
Rating
Unit
VEE
 Power Supply (VCC= 5.0 V)
−8.0 to 0
Vdc
VCC
 Power Supply (VEE= −5.2 V)
0 to +7.0
Vdc
VI
 Input Voltage (VCC= 5.0 V) TTL
0 to VCC
Vdc
Iout
 Output Current− Continuous
               − Surge
50
100
mA
TA
 Operating Temperature Range
0 to +75
Tstg
 Storage Temperature Range− Plastic
                           − Ceramic
−55 to +150
−55 to +165

MC10H124 Features

•Propagation Delay, 1.5 ns Typical
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10K−Compatible
•Pb−Free Packages are Available*

MC10H124 Typical Application

The MC10H124 has TTL−compatible inputs and MECL complementary open−emitter outputs that allow use as an inverting/non−inverting translator or as a differential line driver. When the common strobe input is at the low−logic level, it forces all true outputs to a MECL low−logic state and all inverting outputs to a MECL high−logic state.

An advantage of this device is that TTL−level information can be transmitted differentially, via balanced twisted pair lines, to MECL equipment, where the signal can be received by the MC10H115 or MC10H116 differential line receivers. The power supply requirements are ground, +5.0 V, and −5.2 V.

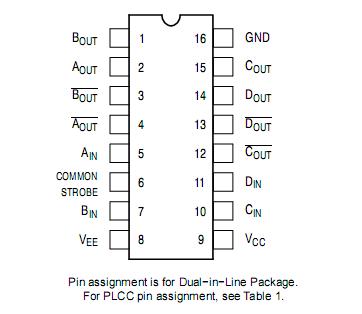

MC10H124 Connection Diagram

MC10H124 Connection Diagram
