General Description
MC10H330 General Description
The MC10H330 is a Quad Bus Driver/Receiver with twotoone output multiplexers. These multiplexers have a common select and output enable. When disabled, (OE = high) the bus outputs go to 2.0 V. Their output can be brought to a low state (VOL) by applying a high level to the receiver enable (RE = High). The parameters specified are with 25 loading on the bus drivers and 50 loads on the receivers.
• Propagation Delay, 1.5 ns Typical DatatoOutput
• Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
• Voltage Compensated
• MECL 10KCompatible
MC10H330 Maximum Ratings
|
Characteristic |
Symbol |
Rating |
Unit |
|
Power Supply (VCC = 0) |
VEE |
8.0 to 0 |
Vdc |
|
Input Voltage (VCC = 0) |
VI |
0 to VEE |
Vdc |
|
Output Current - Continuous - Surge |
Iout |
50 100 |
mA |
|
Operating Temperature Range |
TA |
0 to +75 |
°C |
|
Storage Temperature Range- Plastic - Ceramic |
Tstg |
55 to +150 55 to +165 |
°C °C |

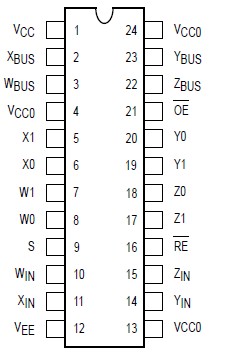

MC10H330 Connection Diagram
MC10H330
