Purchase MC10H424, In-stock MC10H424 From SeekIC.
MFG:MOT D/C:99+
Part Number: MC10H424
MFG: MOT
D/C: 99+
Description: The MC10H424 is a Quad TTLtoECL translator with an ECL strobe. Power supply requirements are ground, +5.0 volts,...
- Table of contents:
MC10H424
-
Suppliers
DataSheet
General Description
MC10H424 General Description
The MC10H424 is a Quad TTLtoECL translator with an ECL strobe. Power supply requirements are ground, +5.0 volts, and 5.2 volts.
MC10H424 Maximum Ratings
| MAXIMUM RATINGS | |||
| Characteristic |
Symbol | Rating | Unit |
| Power Supply (VCC= 5.0 V) |
VEE | 8.0 to 0 | Vdc |
Power Supply (VEE= 5.2 V) |
VCC | 0 to +7.0 | Vdc |
| Input Voltage (ECL) |
VI | 0 to VEE | Vdc |
| Input Voltage (TTL) |
VI | 0 to VCC | Vdc |
| Output Current- Continuous - Surge |
Iout | 50 100 |
mA |
| Operating Temperature Range |
TA | 0 to +75 | °C |
| Storage Temperature Range- Plastic - Ceramic |
Tstg | 55 to +150 55 to +165 |
°C |
MC10H424 Features
•Propagation Delay, 1.5 ns Typical
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10K - Compatible
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10K - Compatible

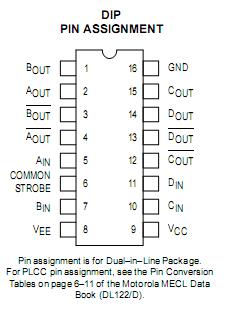

MC10H424 Connection Diagram
MC10H424
PDF/DataSheet Download
- Datasheet: MC10H424
- File Size: 80034 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
