Part Number: MC10H600
MFG: MOT
Description: The MC10H/100H600 is a 9bit, dual supply TTL to ECL translator.Devices in the Motorola 9bit translator series utilize the 28l...
- Table of contents:
MC10H600
-
Suppliers
DataSheet
General Description
MC10H600 General Description
The MC10H/100H600 is a 9bit, dual supply TTL to ECL translator.Devices in the Motorola 9bit translator series utilize the 28lead PLCC foroptimal power pinning, signal flowthrough and electrical performance.The H600 features both ECL and TTL logic enable controls for maximum flexibility.
The 10H version is compatible with MECL 10H ECL logic levels. The100H version is compatible with 100K levels.
MC10H600 Maximum Ratings
| 10H ECL DC CHARACTERISTICS: VCCT= 5.0 V ±10%; VEE= 5.2 V ±5% | |||||||||
Symbol |
Parameter | 0°C | 25°C | 75°C | Unit | Condition | |||
Min |
Max | Min | Max |
Min | Max | ||||
| IIH IIL |
Input HIGH Current Input LOW Current |
0.5
|
225 | 0.5 | 145 | 0.5 | 145 | µA µA |
|
| VIH VIL |
Input HIGH Voltage Input LOW Voltage |
1170 1950 |
840 1480 |
1130 1950 |
810 1480 |
1070 1950 |
735 1450 |
mV | |
| VOH VOL |
Output HIGH Voltage Output LOW Voltage |
1020 1950 |
840 1630 |
980 1950 |
810 1630 |
920 1950 |
735 1600 |
mV | 50 Ωto 2.0 V |
MC10H600 Features
•9Bit Ideal for ByteParity Applications
•FlowThrough Configuration
•Extra TTL and ECL Power/Ground Pins to Minimize Switching Noise
•ECL and TTL Enable Inputs
•Dual Supply
•3.5 ns Max D to Q
•PNP TTL Inputs for Low Loading
•Choice of ECL Compatibility: MECL 10H (10Hxxx) or 100K (100Hxxx)
•FlowThrough Configuration
•Extra TTL and ECL Power/Ground Pins to Minimize Switching Noise
•ECL and TTL Enable Inputs
•Dual Supply
•3.5 ns Max D to Q
•PNP TTL Inputs for Low Loading
•Choice of ECL Compatibility: MECL 10H (10Hxxx) or 100K (100Hxxx)

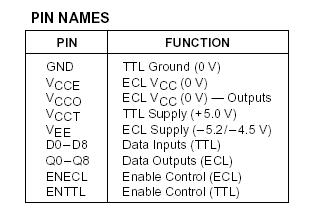

MC10H600 Connection Diagram
MC10H600
PDF/DataSheet Download
- Datasheet: MC10H600
- File Size: 67239 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
