Purchase MC10H607, In-stock MC10H607 From SeekIC.
MFG:MOT
Part Number: MC10H607
MFG: MOT
Description: The MC10H/100H607 is a 6bit, registered PECL to TTL translator.The device features differential PECL inputs for both data and clock...
- Table of contents:
MC10H607
-
Suppliers
DataSheet
General Description
MC10H607 General Description
The MC10H/100H607 is a 6bit, registered PECL to TTL translator.The device features differential PECL inputs for both data and clock. The TTL outputs feature 48mA sink, 24mA source drive capability for driving high fanout loads or transmission lines. The asynchronous master reset control is an ECL level input.
With its differential PECL inputs and TTL outputs the H607 device is ideally suited for the receive function of a HPPI bus type boardtoboard interface application. The on chip registers simplify the task of synchronizing the data between the two boards.
The device is available in either ECL standard: the 10H device is compatible with MECL 10H logic levels, with a VCC of +5.0 volts, while the 100H device is compatible with 100K logic levels, with a VCC of +5.0 volts.
MC10H607 Maximum Ratings
| 100H PECL DC CHARACTERISTICS (VCCT= VCCE= 5.0V ±5%) | |||||||||
| Symbol
|
Characteristic | TA= 0°C |
TA= 25°C | TA= 85°C | Unit | Condition | |||
| Min | Max |
Min | Max | Min | Max | ||||
| IINH
|
Input HIGH Current
|
255
|
145
|
145
|
µA
|
||||
| IINL | Input LOW Current | 0.5 | 0.5 | 0.5 | µA | ||||
| VIH | Input HIGH Voltage | 3830 |
4160 | 3870
|
4190 | 3930
|
4280 | mV | VCCT= 5.0V |
| VIL | Input LOW Voltage | 3050 | 3520 | 3050 | 3520 | 3050 | 3555 | mV | VCCT= 5.0V |
| VBB | Output Bias Voltage | 3600 | 3710 | 3630 | 3730 | 3670 | 3790 | mV | VCCT= 5.0V |
MC10H607 Features
•Differential ECL Data and Clock Inputs
•48mA Sink, 15mA Source TTL Outputs
•Single Power Supply
•Multiple Power and Ground Pins to Minimize Noise
•48mA Sink, 15mA Source TTL Outputs
•Single Power Supply
•Multiple Power and Ground Pins to Minimize Noise

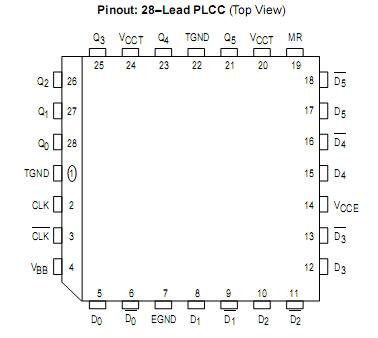

MC10H607 Connection Diagram
MC10H607
