MC10J181
-
Suppliers
DataSheet
General Description
MC10J181 Maximum Ratings
|
Characteristic |
Symbol |
Rating |
Unit |
|
Power Supply (VCC = 0) |
VEE |
8.0 to 0 |
Vdc |
|
Input Voltage (VCC = 0) |
VI |
0 to V EE |
Vdc |
|
Output Current- Continuous |
Iout |
50 |
mA |
|
Operating Temperature Range |
TA |
0 to +75 |
°C |
|
Storage Temperature Range- Plastic |
Tstg |
55 to +150 |
°C |
MC10J181 Features
* Improved Noise Margin, 150 mV (Over Operating Voltage and Temperature Range)
* Voltage Compensated
* MECL 10K Compatible
* Voltage Compensated
* MECL 10K Compatible

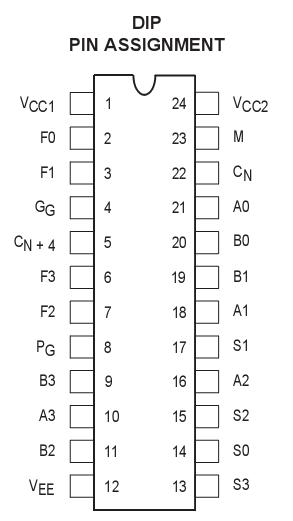

MC10J181 Connection Diagram
