Part Number: MC10SX1130



MFG: MOTO





Description: The MC10SX1130 is high speed LED Driver/current switch specifically targeted for use in FDDI PMD and A...


Urgent Purchase

MC10SX1130 General Description


The MC10SX1130 is high speed LED Driver/current switch specifically targeted for use in FDDI PMD and ANSI X3T9.3 FibreChannel 266 Mbits/s optical transmitters. The integrated circuit contains several unique functional blocks which makes it easily configurable for use with a variety of high performance LED devices. The part is fabricated using Motorola's proven MOSAIC III] advanced bipolar process. The logic is designed so that a data HIGH input results in the modulation current flowing through the IOUT pin to turn on the LED.
• Differential Data Inputs
• 300MHz Operation
• 100mA Peak Drive Current
• Extremely Low Jitter
• Duty Cycle Distortion Compensation
• Adjustable Output Current Tracking With Temperature
• Thermally Enhanced 16-Lead SOIC Package
• 75kW Data Input Pulldown Resistors
• +5V or 5.2V Operation
• VBB Reference Available

MC10SX1130 Maximum Ratings

Symbol Parameter Value Unit
VEE Power Supply (VCC = 0V) 7.0 to 0 VDC
VI Input Voltage (VCC = 0V) 0 to 6.0 VDC
Iout Output Current Continuous
Surge		 100
110		 mA
TA Operating Temperature Range 40 to +85
VEE Operating Range (VCC = 0) 5.5 to 4.5 VDC
* Absolute maximum rating, beyond which, device life may be impaired.

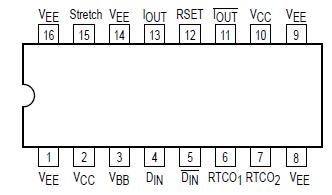

MC10SX1130 Connection Diagram

MC10SX1130 Connection Diagram
