General Description
MC13017 General Description
The MC13017 consists of all the necessary circuits for TV NTSC/PAL decoding and timebase processing. It forms a kit set with the MC44301 VIF and the TDA3190 Sound IF and Power for a low cost, high performance CTV system.
• OnChip Sync Separator
• Dual Loop Horizontal Timebase
• Direct Locked Vertical Counter
• XRay Protection
• Noise Blanking on Sync Separator
• NTSC/PAL Color Decoding
• Direct Interface with SECAM TDA3030B
• 4.43/3.579 MHz Crystal Reference
• Three DC High Impedance Control Outputs for Contrast, Brightness, and Saturation
• 12 V Supply
• Vertical Ramp Buffer Output
• Sandcastle Output
• Hue Control
MC13017 Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltages | VCC1, VCC3 VCC2 |
15 10 |
V |
| Operating Temperature Range | TA | 0 to +70 | 5C |
| Storage Temperature Range | Tstg | 55 to +125 | |
| Horizontal Output Voltage Vertical Output Voltage |
VOH VOV |
8.0 4.0 |
V |

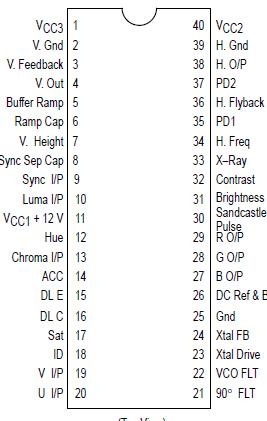

MC13017 Connection Diagram
