MFG:MOTOROLA Package Cooled:SOP D/C:N/A
MFG: MOTOROLA
Package Cooled: SOP
D/C: N/A
Description: The MC13022A is designed for home and automotive AM stereo radio applications. The circuits and functi...
The MC13022A is designed for home and automotive AM stereo radio applications. The circuits and functions included in the design allow implementation of a fullfeatured CQUAM[ AM stereo radio with relatively few, inexpensive external parts. It is available in either 28lead DIP or EIAJ compatible widebodied 28lead SOIC. Functionally, the MC13022A and MC13022 are very similar. The MC13022A has 10 dB more audio output and a CMOS compatible logic level output (Pin 15) for stop sense. The stop sense/AGC function has been internally connected to the output notch filter control.

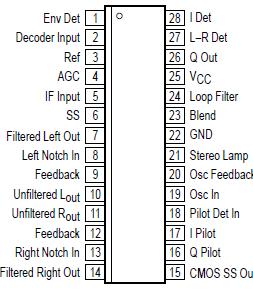

• Operation from 6.0 V to 10 V Supply with Current Drain of 20 mA Typ
• IF Amplifier with Two Speed AGC
• Post Detection Filters that Allow Automatic Adjustable Audio Bandwidth Control and Notch Filtering (9.0 or 10 kHz)
• Signal Quality Controlled Stereo Blend and Noise Reduction
• Noise and CoChannel Discriminating StopOnStation
• Signal Strength Indicator Output for Stop Sense and/or Meter Drive
• Signal Strength Controlled IF and Audio Bandwidth
• Noise Immune Pilot Detector Needs no Precision Filter Components
• MC13025 Complementary Electronically Tuned Radio Front End
• CMOS Compatible Driver for Stop Sense
| Rating | Symbol | Value | Unit |
| Power Supply Input Voltage | VCC | 12 | Vdc |
| Stereo Indicator Lamp Current (Pin 21) | 30 | mAdc | |
| Operating Ambient Temperature | TA | 40 to +85 | |
| Storage Temperature Range | Tstg | 65 to +150 | |
| Operating Junction Temperature | TJ(max) | 150 | |
| Power Dissipation Derate above 25 |
PD | 1.25 10 |
W mW/ |
MC13022A/D
PDF/DataSheet Download
