Purchase MC13111A/B, In-stock MC13111A/B From SeekIC.
Part Number: MC13111A/B
Description: The MC13110A/B and MC13111A/B integrates several of the functions required for a cordless telephone in...
- Table of contents:
MC13111A/B
-
Suppliers
DataSheet
General Description
MC13111A/B General Description
The MC13110A/B and MC13111A/B integrates several of the functions required for a cordless telephone into a single integrated circuit. This significantly reduces component count, board space requirements, external adjustments, and lowers overall costs. It is designed for use in both the handset and the base.
MC13111A/B Maximum Ratings
| Characteristic | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 0.5 to+6.0 | Vdc |
| Junction Temperature | TJ | 65 to +150 | °C |
| Maximum Power Dissipation, TA = 25°C | PD | 70 | mW |
MC13111A/B Features
MC13110A and MC13111A: Fully Programmable in all Power Modes
MC13110B and MC13111B: MPU Clk Out and Second Local Oscillator are "Always On". There is No Inactive Mode
Dual Conversion FM Receiver
Complete Dual Conversion Receiver Antenna Input to Audio Out 80 MHz Maximum Carrier Frequency
RSSI Output
Carrier Detect Output with Programmable Threshold
Comparator for Data Recovery
Operates with Either a Quad Coil or Ceramic Discriminator
Compander
Expander Includes Mute, Digital Volume Control, Speaker Driver,Programmable Low Pass Filter, and Gain Block
Compressor Includes Mute, Programmable Low Pass Filter, Limiter,and Gain Block
MC13110A/B only: Frequency Inversion Scrambler
Function Controlled via MPU Interface
Programmable Carrier Modulation Frequency
Dual Universal Programmable PLL
Supports New 25 Channel U.S. Standard with No External Switches
Universal Design for Domestic and Foreign Cordless Telephone
Standards
Digitally Controlled Via a Serial Interface Port
Receive Side Includes 1st LO VCO, Phase Detector, and 14Bit
Programmable Counter and 2nd LO with 12Bit Counter
Transmit Section Contains Phase Detector and 14Bit Counter
MPU Clock Outputs Eliminates Need for MPU Crystal
Low Battery Detect
Provides Two Levels of Monitoring with Separate Outputs
Separate, Adjustable Trip Points
2.7 to 5.5 V Operation (15 µA Current Consumption in Inactive Mode)
AN1575: Refer to this Application Note for a List of the "Worldwide
MC13110B and MC13111B: MPU Clk Out and Second Local Oscillator are "Always On". There is No Inactive Mode
Dual Conversion FM Receiver
Complete Dual Conversion Receiver Antenna Input to Audio Out 80 MHz Maximum Carrier Frequency
RSSI Output
Carrier Detect Output with Programmable Threshold
Comparator for Data Recovery
Operates with Either a Quad Coil or Ceramic Discriminator
Compander
Expander Includes Mute, Digital Volume Control, Speaker Driver,Programmable Low Pass Filter, and Gain Block
Compressor Includes Mute, Programmable Low Pass Filter, Limiter,and Gain Block
MC13110A/B only: Frequency Inversion Scrambler
Function Controlled via MPU Interface
Programmable Carrier Modulation Frequency
Dual Universal Programmable PLL
Supports New 25 Channel U.S. Standard with No External Switches
Universal Design for Domestic and Foreign Cordless Telephone
Standards
Digitally Controlled Via a Serial Interface Port
Receive Side Includes 1st LO VCO, Phase Detector, and 14Bit
Programmable Counter and 2nd LO with 12Bit Counter
Transmit Section Contains Phase Detector and 14Bit Counter
MPU Clock Outputs Eliminates Need for MPU Crystal
Low Battery Detect
Provides Two Levels of Monitoring with Separate Outputs
Separate, Adjustable Trip Points
2.7 to 5.5 V Operation (15 µA Current Consumption in Inactive Mode)
AN1575: Refer to this Application Note for a List of the "Worldwide

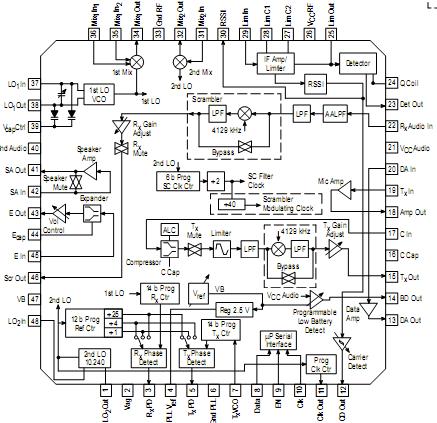

MC13111A/B Connection Diagram
