Purchase MC13192, In-stock MC13192 From SeekIC.
Part Number: MC13192
Description: The MC13192 and MC13193 are short range, low power, 2.4 GHz Industrial, Scientific, and Medical (ISM) ...
- Table of contents:
MC13192
-
Suppliers
DataSheet
General Description
MC13192 General Description
The MC13192 and MC13193 are short range, low power, 2.4 GHz Industrial, Scientific, and Medical (ISM) band transceivers. The MC13192/MC13193 contain a complete 802.15.4 physical layer (PHY) modem designed for the IEEE® 802.15.4 wireless standard which supports peer-to-peer, star, and mesh networking.
The MC13192 includes the 802.15.4 PHY/MAC for use with the HCS08 Family of MCUs. The MC13193 also includes the 802.15.4 PHY/MAC plus the ZigBee Protocol Stack for use with the HCS08 Family of MCUs. With the exception of the addition of the ZigBee Protocol Stack, the MC13193 functionality is the same as the MC13192.
When combined with an appropriate microcontroller (MCU), the MC13192/MC13193 provide a cost-effective solution for short-range data links and networks. Interface with the MCU is accomplished using a four wire serial peripheral interface (SPI) connection and an interrupt request output which allows for the use
of a variety of processors. The software and processor can be scaled to fit applications ranging from simple point-to-point systems, through complete ZigBee™ networking.
For more detailed information about MC13192/MC13192 operation, refer to the MC13192/MC13193 Reference Manual, part number MC13192RM.
MC13192 Maximum Ratings
| Rating |
Symbol |
Value |
Unit |
| Power Supply Voltage |
VBATT, VDDINT |
3.6 |
Vdc |
| RF Input Power |
Pmax |
10 |
dBm |
| Junction Temperature |
TJ |
125 |
°C |
| Storage Temperature Range |
Tstg |
-55 to 125 |
°C |
Note: Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the limits in the Electrical Characteristics or Recommended Operating Conditions tables.
Note: Meets Human Body Model (HBM) = 2 kV and Machine Model (MM) = 200 V except RFIN± = 100 V MM, PAO± = 50 V MM & 1 kV HBM, and VBATT = 100 V MM. RF output pins have no ESD protection.
MC13192 Features
• Recommended power supply range: 2.0 to 3.4 V
• 16 Channels
• 0 dBm nominal, programmable from -27 dBm to 4 dBm typical maximum output power
• Buffered transmit and receive data packets for simplified use with low cost MCUs
• Supports 250 kbps O-QPSK data in 5.0 MHz channels and full spread-spectrum encode and decode
(compatible with IEEE Standard 802.15.4)
• Three power down modes for power conservation:
- < 1 A Off current
- 1 A Typical Hibernate current
- 35 A Typical Doze current (no CLKO)
• RX sensitivity of -92 dBm (typical) at 1.0% packet error rate
• Four internal timer comparators available to reduce MCU resource requirements
• Programmable frequency clock output for use by MCU
• Onboard trim capability for 16 MHz crystal reference oscillator eliminates need for external
variable capacitors and allows for automated production frequency calibration.
• Seven general purpose input/output (GPIO) signals
• Operating temperature range: -40 °C to 85 °C
• Small form factor QFN-32 Package
- RoHS compliant
- Meets moisture sensitivity level (MSL) 3
- 260 °C peak reflow temperature
- Meets lead-free requirements
• 16 Channels
• 0 dBm nominal, programmable from -27 dBm to 4 dBm typical maximum output power
• Buffered transmit and receive data packets for simplified use with low cost MCUs
• Supports 250 kbps O-QPSK data in 5.0 MHz channels and full spread-spectrum encode and decode
(compatible with IEEE Standard 802.15.4)
• Three power down modes for power conservation:
- < 1 A Off current
- 1 A Typical Hibernate current
- 35 A Typical Doze current (no CLKO)
• RX sensitivity of -92 dBm (typical) at 1.0% packet error rate
• Four internal timer comparators available to reduce MCU resource requirements
• Programmable frequency clock output for use by MCU
• Onboard trim capability for 16 MHz crystal reference oscillator eliminates need for external
variable capacitors and allows for automated production frequency calibration.
• Seven general purpose input/output (GPIO) signals
• Operating temperature range: -40 °C to 85 °C
• Small form factor QFN-32 Package
- RoHS compliant
- Meets moisture sensitivity level (MSL) 3
- 260 °C peak reflow temperature
- Meets lead-free requirements
MC13192
PDF/DataSheet Download
- Datasheet: MC13192
- File Size: 393216 KB
- Manufacturer: FREESCALE
- Click here to Download
- ·MC1000
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC1001
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC100193
- ON SEMICONDUCTOR
- 5V ECL Error Detection/Correction Circuit
- 124927 KB
- ·MC1002
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC100210
- ON SEMICONDUCTOR
- 5V ECL Dual 1:4, 1:5 Differential Fanout Buffer
- 225280 KB
- ·MC100241
- ON SEMICONDUCTOR
- 5V ECL 8-Bit Scannable Register
- 225280 KB
- ·MC100256
- ON SEMICONDUCTOR
- 5V ECL 3 Bit 4:1 Mux Latch
- 124927 KB
- ·MC1003
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
MC13192 Relative Products
MC13191FCR2
IC RF TRANSCEIVER 2.4GHZ 32-QFN
MC13191FC
IC RF TRANSCEIVER 2.4GHZ 32-QFN

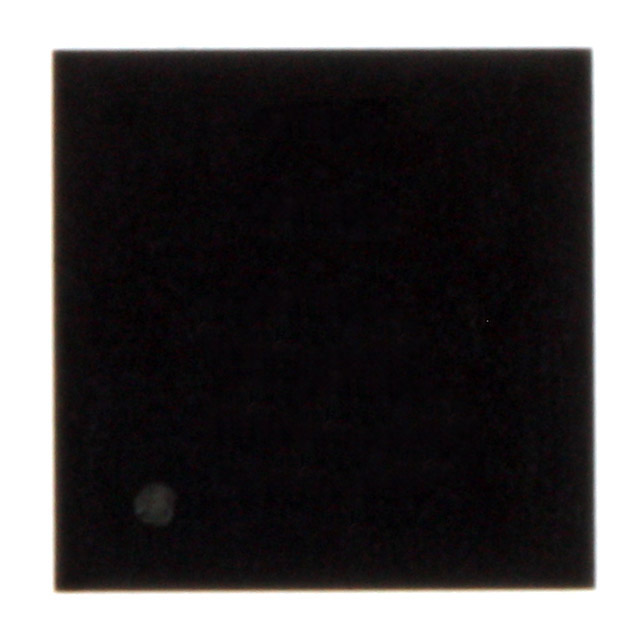

MC13190FCR2
