Part Number: MC13280AYP



MFG: MOTOLORA

Package Cooled: DIP

D/C: 4

Description: The MC13280AY and MC13281A/B are three channel wideband amplifiersdesigned for use as a video preampli...


Urgent Purchase

MC13280AYP General Description


The MC13280AY and MC13281A/B are three channel wideband amplifiersdesigned for use as a video preamplifier in high resolution RGB color monitors

MC13280AYP Maximum Ratings

Rating Pin Value Unit
Power Supply Voltage VCC
Video VCC

Vdc
0.5, 10
0.5, 10
Vdc
Voltage at Video Amplifier Inputs 2, 4, 6 0.5, +5.0 Vdc
CollectorEmitter Current (Three Channels) Video VCC 120 mA
Storage Temperature

65 +150 °C
Junction Temperature - 150 °C

MC13280AYP Features

• 4.0 Vpp Output Swing
• 3.5 ns Rise/Fall Time, 100 MHz Bandwidth (MC13281A/B)
• 4.3 ns Rise/Fall Time, 80 MHz Bandwidth (MC13280AY)
• Subcontrast Controls for Each Channel
• Main Contrast Control
• Blanking and Clamping Inputs
• Packages: NDIP24 and NDIP20
• A Single PC Board Pattern Can Accept the MC13281A and the MC13282A (Video Amplifier with OSD)

MC13280AYP Typical Application

The MC13280AY and MC13281A/B are composed of three video amplifiers, clamping and blanking circuitry with contrast and subcontrast controls. Each video amplifier is designed to have a 3.0 dB bandwidth of 100 MHz(MC13281, 80 MHz for the MC13280) with a gain of up to about 5.6 V/V, or 15 dB.

Video Input
The video input stages are high impedance and designed to accept a maximum signal of 1.0 Vpp with 75 W termination (typically) provided externally. During the clamping period, a current is provided to the input capacitor by the clamping circuit which brings the input to a proper dc level (nominal2.0 V). The blanking and clamping signals are to be provided externally, with their thresholds at 1.25 V and 3.75 V, respectively.

Video Output
The video output stages are configured as emitterfollowers, with a driving capability of about 15 mA for each channel. The dc voltage at these three emitters is set to 1.2 V (black level). The dc current through each output stage is determined by the emitter resistor (typically 330 W).

Contrast Control
The contrast control varies the gain of three video amplifiers from a minimum of 0.3 V/V to a maximum of 5.6 V/V when all subcontrast levels are set to 5.0 V.

Subcontrast Control
Each subcontrast control provides a maximum of 26 dB attenuation on each video amplifier separately.

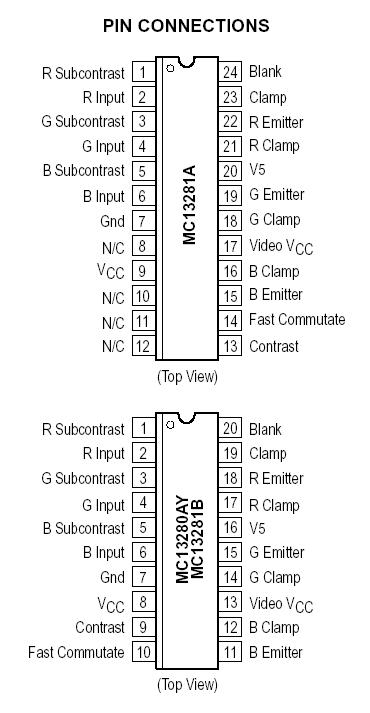

MC13280AYP Connection Diagram

MC13280AYP  Connection Diagram
