Part Number: MC13751









Description: The MC13751 is an integrated transmit upmixer and driver amplifier designed for use in cellular phones...


Urgent Purchase

MC13751 General Description


The MC13751 is an integrated transmit upmixer and driver amplifier designed for use in cellular phones. It includes two mixers and two RF step attenuators. The device is fabricated using Motorola’s Advanced RF BiCMOS process with the SiGe:C option and is housed in a leadless QFN–24 package.

MC13751 Maximum Ratings

Rating
Symbol
Value
Unit
Supply Voltage
VCC
3.6
V
LO Input Power
0
dBm
IF Input Level
0
dBm
Operating Temperature Range
TA
-30to85
°C

NOTES: 1. Maximum Ratings are those values beyond which damage to the device may occur.Functional operation should be restricted to the limits in the Electrical Characteristics tables.
             2. ESD (electrostatic discharge) immunity meets Human Body Model (HBM) 250 V and Machine Model (MM) 25 V. Additional ESD data available upon request.

MC13751 Features

• Total Gain:
   22 dB for Low Band
   19.5 dB for High Band
• Total Current Consumption = 53 mA (Typ)
• Available in Tape and Reel, 2500 Units per 12 mm, 7 inch Reel

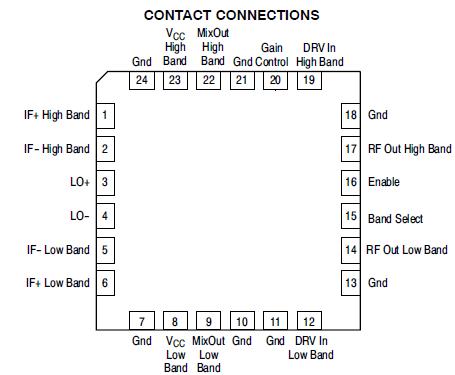

MC13751 Connection Diagram

MC13751 Connection Diagram
