Part Number: MC1378



MFG: DIP

Package Cooled: MOTOROLA

D/C: 02+

Description: The MC1378 is a bipolar composite video overlay encoder and microcomputer synchronizer. The MC1378 con...


Urgent Purchase

MC1378 General Description


The MC1378 is a bipolar composite video overlay encoder and microcomputer synchronizer. The MC1378 contains the complete encoder function of the MC1377, i.e., quadrature color modulators, RGB matrix, and blanking level clamps, plus a complete complement of synchronizers to lock a microcomputerbased video source to any remote video source. The MC1378 can be used as a local system timing and encoding source, but it is most valuable when used to lock the microcomputer source to a remotely originated video signal.

MC1378 Maximum Ratings

Rating Symbol Value Unit
Supply Voltage VCC 6.0 Vdc
Operating Temperature TA 0 to +70 °C
Storage Temperature Tstg 65 to +150 °C
Junction Temperature TJ(max) 150 °C
Power Dissipation Package
Derate above 25°C
PD 1.25
10
W
mW/°C

MC1378 Features

• Contains All Needed Reference Oscillators
• Can Be Operated in PAL or NTSC Mode, 625 or 525 Line
• Wideband, FullFidelity Color Encoding
• Local or Remote Modes of Operation
• Minimal External Components
• Designed to Operate from 5.0 V supply
• Will Work with non standard Video

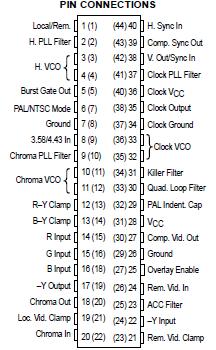

MC1378 Connection Diagram

MC1378  Connection Diagram

MC1378 datasheet

MC1378/D
PDF/DataSheet Download

Find MC1378 Suppliers

  • ·MC1000
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1000 Datasheet Download
  • ·MC1001
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1001 Datasheet Download
  • ·MC100193
  • ON SEMICONDUCTOR
  • 5V ECL Error Detection/Correction Circuit
  • 124927 KB
  • MC100193 Datasheet Download
  • ·MC1002
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1002 Datasheet Download
  • ·MC100210
  • ON SEMICONDUCTOR
  • 5V ECL Dual 1:4, 1:5 Differential Fanout Buffer
  • 225280 KB
  • MC100210 Datasheet Download
  • ·MC100241
  • ON SEMICONDUCTOR
  • 5V ECL 8-Bit Scannable Register
  • 225280 KB
  • MC100241 Datasheet Download
  • ·MC100256
  • ON SEMICONDUCTOR
  • 5V ECL 3 Bit 4:1 Mux Latch
  • 124927 KB
  • MC100256 Datasheet Download
  • ·MC1003
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1003 Datasheet Download

MC1378 Relative Products

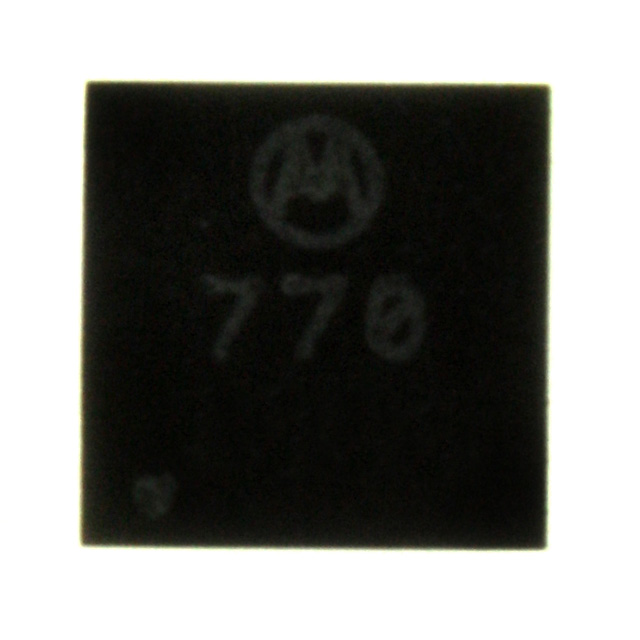

  • MC13770FCR2
