Part Number: MC14012B



MFG: MOTOROLA



D/C: 03+

Description: * Supply Voltage Range = 3.0 Vdc to 18 Vdc* All Outputs Buffered* Capable of Driving Two Lowpower TTL Loads or ...


Urgent Purchase

MC14012B General Description


* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* All Outputs Buffered
* Capable of Driving Two Lowpower TTL Loads or One Lowpower Schottky TTL Load Over the Rated Temperature Range.
* Double Diode Protection on All Inputs
* PinforPin Replacements for Corresponding CD4000 Series B Suffix Devices

MC14012B Maximum Ratings

Symbol Parameter Value Unit
VDD DC Supply Voltage Range 0.5 to +18.0 V
Vin,Vout
 Input or Output Voltage Range(DC or Transient) 0.5 to VDD + 0.5
 V
Iin,Iout
 Input or Output Current(DC or Transient)per Pin ±10 mA
PD Power Dissipation, per Package (Note 3.) 500 mW
TA Ambient Temperature Range 55 to +125
Tstg Storage Temperature Range 65 to +150
TL Lead Temperature(8Second Soldering) 260

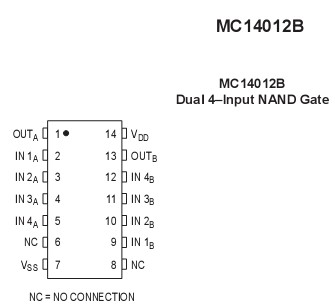

MC14012B Connection Diagram

MC14012B Connection Diagram

MC14012B datasheet

MC14012B
PDF/DataSheet Download
