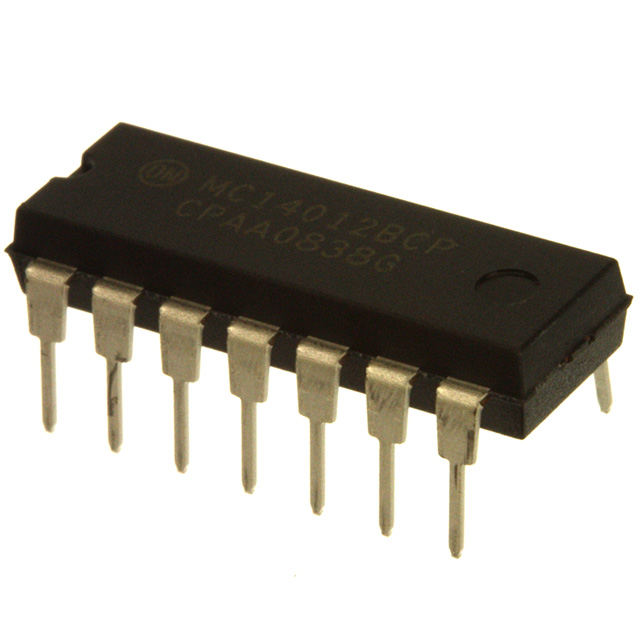

MC14012BDR2 Product Image

MC1 Series Datasheet download

Five Points

Part Number: MC14012BDR2

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor





Descriptions: IC GATE NAND DUAL P/N 14-SOIC

Price Break

2500

Unit Price

.19500

Extended Price

487.50

(All prices are in USD) Prices for reference only
Urgent Purchase

MC14012BDR2 General Description

IC GATE NAND DUAL P/N 14-SOIC

MC14012BDR2 Parameters

Technical/Catalog InformationMC14012BDR2
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits2 - Dual
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs4
Current - Output High, Low3.4mA, 3.4mA
Supply Voltage3 V ~ 18 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply3 V ~ 18 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC14012BDR2
