Part Number: MC14014B



MFG: MOTOROLA

Package Cooled: 03+



Description: * Synchronous Parallel Input/Serial Output (MC14014B)* Asynchronous Parallel Input/Serial Output (MC14021B)* Sy...


Urgent Purchase

MC14014B General Description


* Synchronous Parallel Input/Serial Output (MC14014B)
* Asynchronous Parallel Input/Serial Output (MC14021B)
* Synchronous Serial Input/Serial Output
* Full Static Operation
* "Q" Outputs from Sixth, Seventh, and Eighth Stages
* Double Diode Input Protection
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Capable of Driving Two Low-power TTL Loads or One Low-power
Schottky TTL Load Over the Rated Temperature Range
* MC14014B Pin-for-Pin Replacement for CD4014B
* MC14021B Pin-for-Pin Replacement for CD4021B
* Pb-Free Packages are Available*

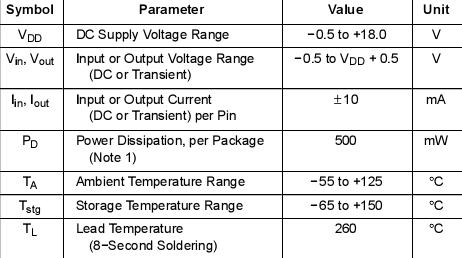

MC14014B Maximum Ratings



MC14014B Features

* Synchronous Parallel Input/Serial Output (MC14014B)
* Asynchronous Parallel Input/Serial Output (MC14021B)
* Synchronous Serial Input/Serial Output
* Full Static Operation
* "Q" Outputs from Sixth, Seventh, and Eighth Stages
* Double Diode Input Protection
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Capable of Driving Two Low-power TTL Loads or One Low-power
Schottky TTL Load Over the Rated Temperature Range
* MC14014B Pin-for-Pin Replacement for CD4014B
* MC14021B Pin-for-Pin Replacement for CD4021B
* Pb-Free Packages are Available*

MC14014B Connection Diagram

MC14014B Connection Diagram
