Position: Home > Datasheet list > MC1 Series > Index M > MC14051B
Electronica China

Purchase MC14051B, In-stock MC14051B From SeekIC.

MFG:MOT  Package Cooled:SOP/16

MC14051B Product Image

MC1 Series Datasheet download

Five Points

Part Number: MC14051B



MFG: MOT

Package Cooled: SOP/16





Urgent Purchase

MC14051B Maximum Ratings

Symbol

Parameter
Value
Unit
VDD
 DC Supply Voltage (Referenced to VEE,VSSVEE)
0.5 to + 18.0
V
Vin, Vout
 Input or Output Voltage (DC or Transient) (Referenced to VSS for Control Inputs and VEE for Switch I/O)
0.5 to VDD + 0.5
V
Iin
 Input Current (DC or Transient),
per Control Pin
± 10
mA
Isw
 Switch Through Current
± 25
mA
PD
 Power Dissipation. per Package†
500
mA
Tstg
 Storage Temperature
65 to + 150
TL
 Lead Temperature (8Second Soldering)
260

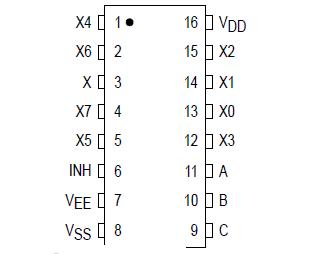

MC14051B Connection Diagram

MC14051B Connection Diagram
