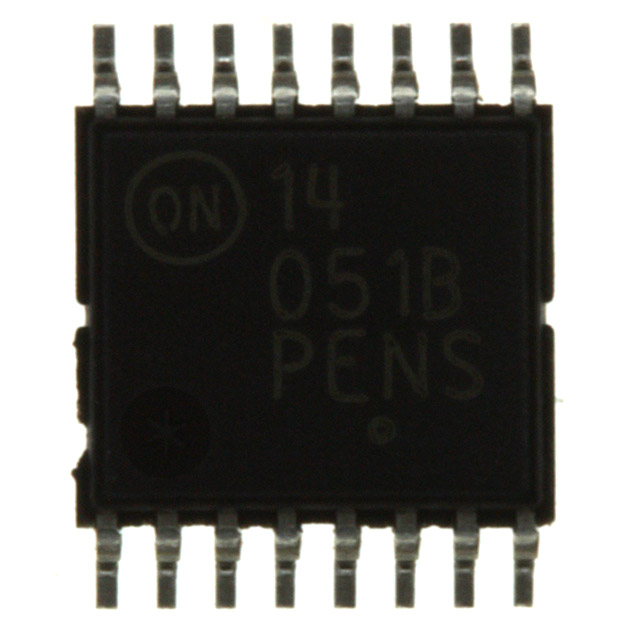

MC14051BF

Supply Current :
Maximum Power Dissipation : 500 mW
Supply Voltage - Min : 3 V
On Resistance (Max) : 1050 Ohms
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Propagation Delay Time : 30 ns
Number of Channels : 1 Channel
Packaging : Tube
Supply Voltage - Max : 18 V
On Time (Max) : 700 ns
Off Time (Max) : 700 ns
Package / Case : SOIC EIAJ


Parameters:

Technical/Catalog Information	MC14051BF
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±3 V ~ 18 V
Circuit	1 x 8:1
On-State Resistance	280 Ohm
Mounting Type	Surface Mount
Package / Case	16-SOIC (5.3mm Width), 16-SO, 16-SOEIIJ
Packaging	Tube
Current - Supply	0.36A
Operating Temperature	-55°C ~ 125°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC14051BF MC14051BF
