MC14066B
-
Suppliers
DataSheet
General Description
MC14066B Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
DC Supply VoltageRange |
0.5 to +18.0 |
V |
|
Vin,Vout |
Input or Output Voltage (DC or Transient) |
0.5 to VDD + 0.5 |
V |
|
Iin |
Input or Output Current (DC or Transient), per Control Pin |
±10 |
mA |
|
ISW |
Switch Through Current |
±25 |
mA |
|
PD |
Power Dissipation, per Package (Note 3.) |
500 |
mW |
|
TA |
Ambient Temperature Range |
55 to +125 |
|
|
Tstg |
Storage Temperature Range |
65 to +150 |
|
|
TL |
Lead Temperature (8Second Soldering) |
260 |
MC14066B Features
Triple Diode Protection on All Control Inputs
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Linearized Transfer Characteristics
Low Noise - 12 nV/Cycle , f 1.0 kHz typical
PinforPin Replacement for CD4016, CD4016, MC14016B
For Lower RON, Use The HC4066 HighSpeed CMOS Device
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Linearized Transfer Characteristics
Low Noise - 12 nV/Cycle , f 1.0 kHz typical
PinforPin Replacement for CD4016, CD4016, MC14016B
For Lower RON, Use The HC4066 HighSpeed CMOS Device

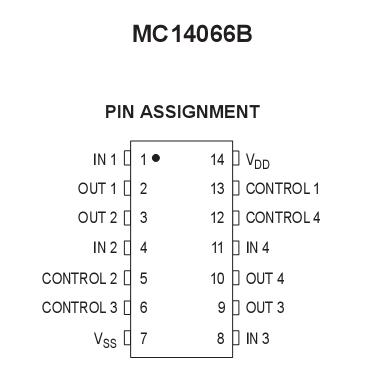

MC14066B Connection Diagram
MC14066B
PDF/DataSheet Download
- Datasheet: MC14066B
- File Size: 212974 KB
- Manufacturer: ON Semi
- Click here to Download
