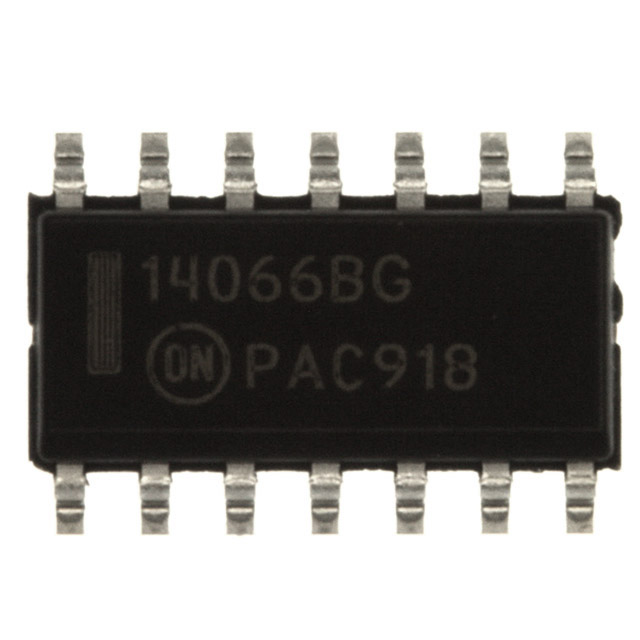

MFG:ON Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor
Descriptions: IC MUX/ANALOG SWITCH QUAD 14SOIC
2500
.21750
543.75
| Technical/Catalog Information | MC14066BDR2 |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Multiplexer |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply, Single/Dual (±) | ±3 V ~ 18 V |
| Circuit | 4 x 1:1 |
| On-State Resistance | 280 Ohm |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Packaging | Tape & Reel (TR) |
| Current - Supply | 0.36A |
| Operating Temperature | -55°C ~ 125°C |
| Function | Multiplexer |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC14066BDR2 MC14066BDR2 MC14066BDR2OSTR ND MC14066BDR2OSTRND MC14066BDR2OSTR |
MC14066BDR2
PDF/DataSheet Download
IC ANLG SWITCH MUX QUAD 14-SOIC
The MC14066BD consists of four independent switches capable of controlling eigher digital or analog signals. Features of the MC14066BD are:(1)triple diode protection on all control inputs;(2)supply voltage range=3.0 Vdc to 18 Vdc;(3)linearized transfer char...
IC MULTIPLEXER QUAD 1X1 14DIP
The MC14066BCP consists of four independent switches capable of controlling eigher digital or analog signals. Features of the MC14066BCP are:(1)triple diode protection on all control inputs;(2)supply voltage range=3.0 Vdc to 18 Vdc;(3)linearized transfer ch...
The MC14066BCL consists of four independent switches capable of controlling eigher digital or analog signals. Features of the MC14066BCL are:(1)triple diode protection on all control inputs;(2)supply voltage range=3.0 Vdc to 18 Vdc;(3)linearized transfer ch...
