Part Number: MC141622
Description: The Advanced Comb FilterII is a video signal processor for VCRs and TVs. It's function is to separate ...
- Table of contents:
MC141622
-
Suppliers
DataSheet
General Description
MC141622 General Description
The Advanced Comb FilterII is a video signal processor for VCRs and TVs. It's function is to separate the Luminance Y and Chrominance C signals from the NTSC composite video signal. The ACFII minimizes dotcrawl and crosscolor. A builtin PLL provides a 4xfsc clock from either an NTSC subcarrier signal or a 4xfsc input. This allows a video signal input of an extended frequency bandwidth. The builtin vertical enhancer circuit improves the quality of the Luminance Y signal. The builtin A/D and D/A converters allow easy connection to analog video circuits.
MC141622 Maximum Ratings
|
Characteristic |
Symbol |
Value |
Unit |
| DC Supply Voltage (Referenced to GND) |
VCC |
0.5 to + 7.0 |
V |
|
DC Input Voltage (Referenced to GND) |
Vin |
1.5 to VCC + 1.5 |
V |
| DC Output Voltage (Referenced to GND) |
Vout |
0.5 to VCC + 0.5 |
V |
| DC Input Current (per pin) |
Iin |
± 20 |
mA |
| DC Output Current (per pin) |
Iout |
± 25 |
mA |
| Power Dissipation |
PD |
750 |
mW |
| Storage Temperature Range |
Tstg |
65 to + 150 |
should be restricted to the limits in the Electrical Characteristics tables or Pin Descriptions section.
This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages
to this high-impedance circuit. For proper operation, Vin and Vout should be constrained to the range GND 3 (Vin
or Vout) 3 VCC. Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC). Unused outputs must be left open.
MC141622 Features
• Builtin High Speed 8Bit A/D Converter
• Two Line Memories (1820 Bytes)
• Advanced CombII Process
• Vertical Enhancer Circuit
• Two High Speed 8Bit D/A Converters
• 4xfsc PLL Circuit
• Builtin Clamp Circuit
• Digital Interface Mode
• OnChip Reference Voltage Regulator for A/D Converter
• Two Line Memories (1820 Bytes)
• Advanced CombII Process
• Vertical Enhancer Circuit
• Two High Speed 8Bit D/A Converters
• 4xfsc PLL Circuit
• Builtin Clamp Circuit
• Digital Interface Mode
• OnChip Reference Voltage Regulator for A/D Converter

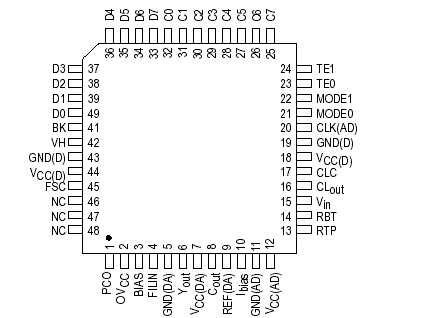

MC141622 Connection Diagram
MC141622/D
