Part Number: MC14174B



MFG: MOT

Package Cooled: 1436

D/C: 87

Description: The MC14174B hex type D flipflop is constructed with MOS Pchannel and Nchannel enhancement mode devices in a single mon...


Urgent Purchase

MC14174B General Description


The MC14174B hex type D flipflop is constructed with MOS Pchannel and Nchannel enhancement mode devices in a single monolithic structure. Data on the D inputs which meets the setup time requirements is transferred to the Q outputs on the positive edge of the clock pulse. All six flipflops share common clock and reset inputs.
The reset is active low, and independent of the clock.
* Static Operation

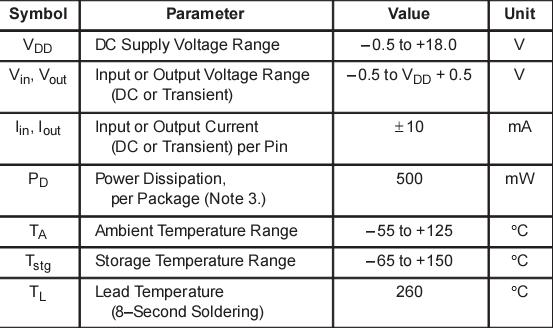

MC14174B Connection Diagram

MC14174B Connection Diagram
