Five Points

Part Number: MC14175B



MFG: DIP8

Package Cooled: SOP16





Urgent Purchase

MC14175B Maximum Ratings

Symbol Parameter Value Unit
VDD DC Supply Voltage Range 0.5 to +18.0 V
Vin,Vout
 Input or Output Voltage Range(DC or Transient) 0.5 to VDD + 0.5
 V
Iin,Iout
 Input or Output Current(DC or Transient)per Pin ±10 mA
PD Power Dissipation, per Package (Note 3.) 500 mW
TA Ambient Temperature Range 55 to +125
Tstg Storage Temperature Range 65 to +150
TL Lead Temperature(8Second Soldering) 260

MC14175B Typical Application

* Complementary Outputs
* Static Operation
* All Inputs and Outputs Buffered
* Diode Protection on All Inputs
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Output Compatible with Two LowPower TTL Loads or One LowPower Schottky TTL Load
* Functional Equivalent to TTL 74175

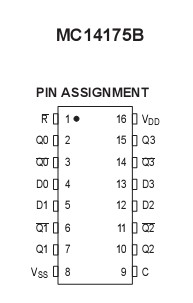

MC14175B Connection Diagram

MC14175B Connection Diagram
