Part Number: MC141800A









Description: MC141800A is a CMOS LCD Driver which consists of 193 high voltage LCD driving signals to drive 128 Seg...


Urgent Purchase

MC141800A General Description


MC141800A is a CMOS LCD Driver which consists of 193 high voltage LCD driving signals to drive 128 Segment and 65 Common display. It has 6800-series parallel, IIC serial interface and Serial Peripheral interface (SPI) capability for operating with general MCU. Besides the general LCD driver features, it has on chip LCD Smart Bias Divider circuit such that minimize external component required in applications.

MC141800A Maximum Ratings

Symbol
Parameter
Value
Unit
AVDD,DVDD
Supply Voltage
-0.3 to +4.0
V
VCC
VSS-0.3 to VSS+16.5
V
Vin
Input Voltage
VSS-0.3 to VDD+0.3
V
I
Current Drain Per Pin Excluding VDD and VSS
25
mA
TA
Operating Temperature
-30 to +85
°C
Tstg
Storage Temperature Range
-65 to +150
°C

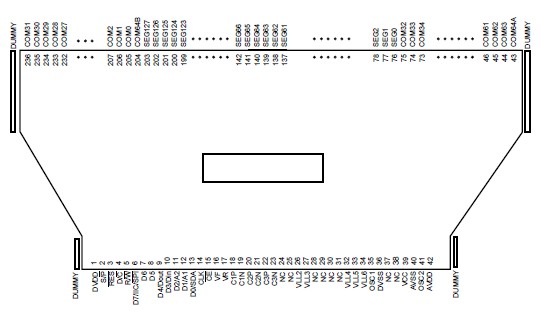

MC141800A Connection Diagram

MC141800A Connection Diagram
