Part Number: MC145436ADW
MFG: MOT
Package Cooled: SOP16
Description: TheMC145436A is a lowpower and improved input sensitivity version of theMC14LC5436.The M...
- Table of contents:
MC145436ADW
-
Suppliers
DataSheet
General Description
MC145436ADW General Description
The MC145436A is a lowpower and improved input sensitivity version of theMC14LC5436.
The MC145436A is a silicon gate CMOS LSI device containing the filter and decoder for detection of a pair of tones conforming to the DTMF standard with outputs in hexadecimal. Switched capacitor filter technology is used together with digital circuitry for the timing control and output circuits. The MC145436 Aprovides excellent power line noise and dial tone rejection and is suitable for applications in central office equipment, PABX, and keyphone systems, remote control equipment and consumer telephony products.
MC145436ADW Maximum Ratings
| Rating | Symbol | Value | Unit |
| DC Supply Voltage | VDD | 0.5 to + 6.0 | V |
| Input Voltage, Any Pin Except Ain | Vin | 0.5 to VDD+ 0.5 | V |
| Input Voltage, Ain | Vin | VDD 10 to VDD+ 0.5 | V |
| DC Current Drain per Pin | I | ±10 | mA |
| Power Dissipation | PD | 100 | mW |
| Operating Temperature Range | TA | 40 to + 85 | °C |
Storage Temperature Range |
Tstg | 65 to + 150 | °C |
MC145436ADW Features
• Single + 5 V Power Supply
• Detects All 16 Standard Digits
• Uses Inexpensive 3.58 MHz Crystal
• Provides Guard Time Controls to Improve Speech Immunity
• Output in 4Bit Hexadecimal Code
• BuiltIn 60 Hz and Dial Tone Rejection
• Pin Compatible with SSI204, MC145436, and MC14LC5436
• Functional and Applicational Compatible with MC145436 and
MC14LC5436
• Detects All 16 Standard Digits
• Uses Inexpensive 3.58 MHz Crystal
• Provides Guard Time Controls to Improve Speech Immunity
• Output in 4Bit Hexadecimal Code
• BuiltIn 60 Hz and Dial Tone Rejection
• Pin Compatible with SSI204, MC145436, and MC14LC5436
• Functional and Applicational Compatible with MC145436 and
MC14LC5436

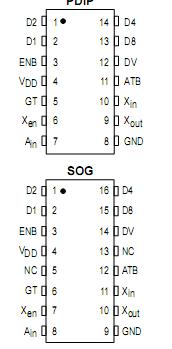

MC145436ADW Connection Diagram
MC145436ADW
