MC14566B
-
Suppliers
DataSheet
General Description
MC14566B Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
DC Supply Voltage |
0.5 to + 18.0 |
V |
|
Vin,Vout |
Input or Output Voltage (DC or Transient) |
0.5 to VDD + 0.5 |
V |
|
Vin,Vout |
Input or Output Current (DC or Transient), per Pin |
±10 |
mA |
|
PD |
Power Dissipation, per Package+ |
500 |
mW |
|
Tstg |
Storage Temperature |
65 to + 150 |
|
|
TL |
Lead Temperature (8Second Soldering) |
260 |
MC14566B Features
Negative Edge Triggered Counters for Ease of Cascading
Pulse Shapers on Counter Inputs Accept Slow Input Rise Times
Monostable Multivibrator Positive or Negative Edge Triggered
Diode Protection on All Inputs
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Lowpower TTL Loads or One LowpowerSchottky TTL Load Over the Rated Temperature Range

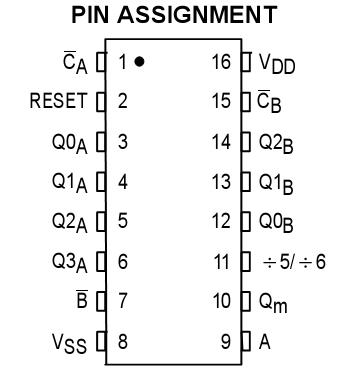

MC14566B Connection Diagram
MC14566B
PDF/DataSheet Download
- Datasheet: MC14566B
- File Size: 200818 KB
- Manufacturer:
- Click here to Download
