General Description
MC14C88B General Description
The MC14C88B is a low power monolithic quad line driver, using BiMOS technology, which conforms to EIA232D, EIA562, and CCITT V.28. The inputs feature TTL and CMOS compatibility with minimal loading. The outputs feature internally controlled slew rate limiting, eliminating the need for external capacitors. Power off output impedance exceeds 300 , and current limiting protects the outputs in the event of short circuits.
Power supply current is less than 160 A over the supply voltage range of ±4.5 to ±15 V. EIA232D performance is guaranteed with a minimum supply voltage of ±6.5 V.
The MC14C88B is pin compatible with the MC1488, SN75188, SN75C188, DS1488, and DS14C88. This device is available in 14 pin plastic DIP, and surface mount packaging.
MC14C88B Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage VCC(max) VEE(min) (VCC VEE)max |
VCC VEE VCC VEE |
+17 17 34 |
Vdc |
| Input Voltage (All Inputs) | Vin | VEE0.3, VEE+39 | Vdc |
| Applied Output Voltage, when VCC=VEE0 V Applied Output Voltage, when VCC=VEE=0 V |
VX | VEE6.0 V, VCC+6.0 V ±15 |
Vdc |
| Output Current | IO | Self Limiting | mA |
| Operating Junction Temperature | TJ | 65, + 150 |
MC14C88B Features
• BiMOS Technology for Low Power Operation (5.0 mW)
• Meets Requirements of EIA232D, EIA562, and CCITT V.28
• Quiescent Current Less Than 160 A
• TTL/CMOS Compatible Inputs
• Minimum 300 Output Impedance when Powered Off
• Supply Voltage Range: ±4.5 to ±15 V
• Pin Equivalent to MC1488
• Current Limited Output: 10 mA Minimum
• Operating Ambient Temperature: 40° to 85°C
• Meets Requirements of EIA232D, EIA562, and CCITT V.28
• Quiescent Current Less Than 160 A
• TTL/CMOS Compatible Inputs
• Minimum 300 Output Impedance when Powered Off
• Supply Voltage Range: ±4.5 to ±15 V
• Pin Equivalent to MC1488
• Current Limited Output: 10 mA Minimum
• Operating Ambient Temperature: 40° to 85°C
MC14C88B Connection Diagram
MC14C88B/D
PDF/DataSheet Download
- Datasheet: MC14C88B/D
- File Size: 118705 KB
- Manufacturer:
- Click here to Download
- ·MC1000
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC1001
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC100193
- ON SEMICONDUCTOR
- 5V ECL Error Detection/Correction Circuit
- 124927 KB
- ·MC1002
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
- ·MC100210
- ON SEMICONDUCTOR
- 5V ECL Dual 1:4, 1:5 Differential Fanout Buffer
- 225280 KB
- ·MC100241
- ON SEMICONDUCTOR
- 5V ECL 8-Bit Scannable Register
- 225280 KB
- ·MC100256
- ON SEMICONDUCTOR
- 5V ECL 3 Bit 4:1 Mux Latch
- 124927 KB
- ·MC1003
- MOTOROLA [Motorola, Inc]
- 6-INPUT GATES
- 205166 KB
MC14C88B Relative Products

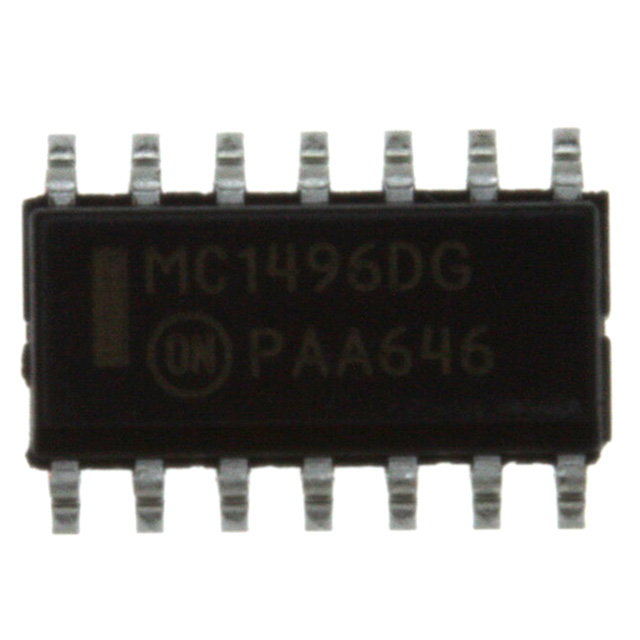

MC1496DG
