Part Number: MC33172 - MC35172









Description: The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200mA/Amp) a...


Urgent Purchase

MC33172 - MC35172 General Description


The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200mA/Amp) and good speed (2.1MHz, 2V/ms). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.

MC33172 - MC35172 Maximum Ratings

Symbol Parameter Value Unit
VCC Supply Voltage ±22 V
Vid Differential Input Voltage (Note 1) V
Vi Input Voltage (Note 1) V
  Output Short Circuit Duration Indefinite S
Toper Operating Temperature Range MC33172
MC35172		 -40 to 105
-55 to 125		 °C
Tj Junction Temperature 150 °C
Tstg Storage Temperature Range 65 to + 150
 °C
Note 1: Either or both input voltages must not exceed the magnitude of VCC.

MC33172 - MC35172 Features

.GOOD CONSUMPTION/SPEED RATIO :
.ONLY 200mA/Amp FOR 2.1MHz, 2V/ms SINGLE (OR DUAL) SUPPLY OPERATION
.FROM +4V TO +44V (±2V TO ±22V) WIDE INPUT COMMON MODE VOLTAGE RANGE INCLUDING VCC
.LOW LEVEL OUTPUT VOLTAGE CLOSE TOVCC . - : 100mV TYPICAL
.PIN TO PIN COMPATIBLE WITH STANDARD DUAL OP AMPs

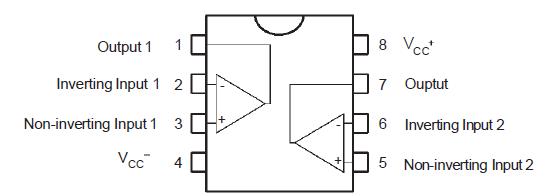

MC33172 - MC35172 Connection Diagram

MC33172 - MC35172 Connection Diagram

MC33172 - MC35172 datasheet
