MC33174DR2

Operational Amplifiers - Op Amps 3-44V Quad Low Power

product image

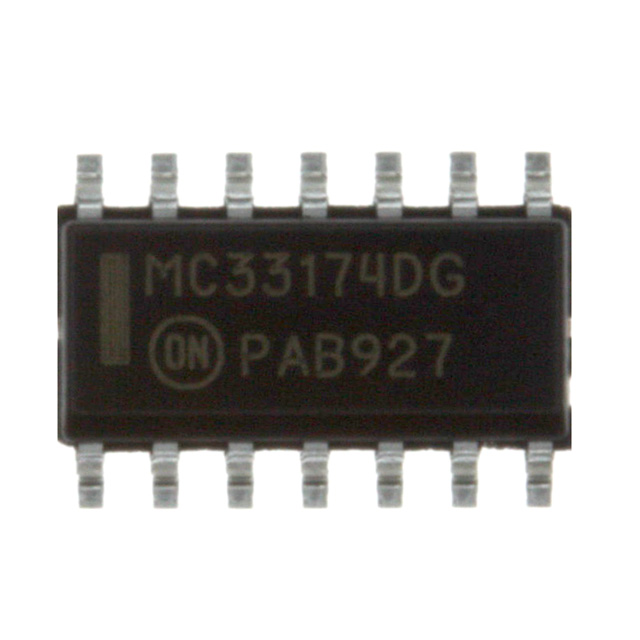

MC33174DR2 Picture
See larger image
SeekIC No. : 00302946 Detail

MC33174DR2: Operational Amplifiers - Op Amps 3-44V Quad Low Power

MC33174DR2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC33174DR2
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 4 Common Mode Rejection Ratio (Min) : 80 dB
Input Offset Voltage : 5 mV at 5 V Input Bias Current (Max) : 100 nA
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V Mounting Style : SMD/SMT
Package / Case : SOIC-14 Slew Rate : 2.1 V/us at +/- 15 V
Shutdown : No Maximum Operating Temperature : + 85 C
Packaging : Reel

Description

Output Current :
Mounting Style : SMD/SMT
Packaging : Reel
Common Mode Rejection Ratio (Min) : 80 dB
Number of Channels : 4
Shutdown : No
Maximum Operating Temperature : + 85 C
Package / Case : SOIC-14
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Input Bias Current (Max) : 100 nA
Input Offset Voltage : 5 mV at 5 V
Slew Rate : 2.1 V/us at +/- 15 V


Parameters:

Technical/Catalog InformationMC33174DR2
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
PackagingTape & Reel (TR)
Amplifier TypeGeneral Purpose
Number of Circuits4 - Quad
Package / Case14-SOIC
Slew Rate2.1 V/s
Gain Bandwidth Product1.8MHz
Current - Supply220A
Current - Output/Channel27mA
Voltage - Supply, Single/Dual (±)3 V ~ 44 V, ±1.5 V ~ 22 V
Output Type-
-3db Bandwidth-
Current - Input Bias0.02A
Operating Temperature-40°C ~ 85°C
Voltage - Input Offset2000V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC33174DR2
MC33174DR2
MC33174DR2OSTR ND
MC33174DR2OSTRND
MC33174DR2OSTR
