General Description
MC33592 Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Supply Voltage |
VCC |
VGND - 0.3 to 5.5 |
V |
|
Voltage Allowed on Each Pin |
VGND - 0.3 |
V | |
|
ESD HBM Voltage Capability on Each Pin (note 1) |
±2000 |
V | |
|
ESD MM Voltage Capability on Each Pin (note 2) |
±200 |
V | |
|
Solder Heat Resistance Test (10 s) |
260 |
°C | |
|
Storage Temperature |
Ts |
-65 to +150 |
°C |
|
Junction Temperature |
Tj |
150 |
°C |
MC33592 Features
• 315MHz, 434MHz Bands
• OOK Demodulation
• Low Current Consumption: 5mA Typ. in Run Mode
• Internal or External Strobing
• Fast Wake-Up Time (1ms)
• -105dBm RF Sensitivity (at 4.8kBd Data Rate)
• Fully Integrated VCO
• Image Cancelling Mixer
• Integrated IF Bandpass Filter at 660kHz
• IF Bandwidth: 300kHz
• ID Byte and Tone Detection
• Data Rate: 1 to 11kBd
• Manchester Coded Data Clock Recovery
• Fully Configurable by SPI Interface
• Few External Components, no RF Adjustment
• OOK Demodulation
• Low Current Consumption: 5mA Typ. in Run Mode
• Internal or External Strobing
• Fast Wake-Up Time (1ms)
• -105dBm RF Sensitivity (at 4.8kBd Data Rate)
• Fully Integrated VCO
• Image Cancelling Mixer
• Integrated IF Bandpass Filter at 660kHz
• IF Bandwidth: 300kHz
• ID Byte and Tone Detection
• Data Rate: 1 to 11kBd
• Manchester Coded Data Clock Recovery
• Fully Configurable by SPI Interface
• Few External Components, no RF Adjustment

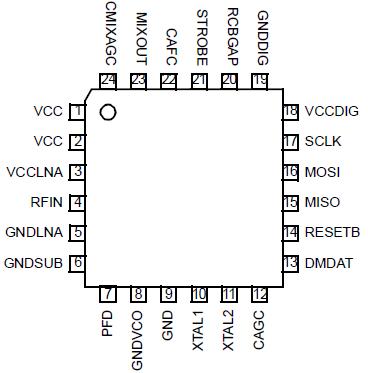

MC33592 Connection Diagram
