Part Number: MC3372



MFG: MOT

Package Cooled: SOP



Description: The MC3371 and MC3372 perform single conversion FM reception and consist of an oscillator, mixer, limiting IF amplifier...


Urgent Purchase

MC3372 General Description


The MC3371 and MC3372 perform single conversion FM reception and consist of an oscillator, mixer, limiting IF amplifier, quadrature discriminator,active filter, squelch switch, and meter drive circuitry. These devices are designed for use in FM dual conversion communication equipment. The MC3371/MC3372 are similar to the MC3361/MC3357 FM IFs, except that a
signal strength indicator replaces the scan function controlling driver which is in the MC3361/MC3357. The MC3371 is designed for the use of parallel LC components, while the MC3372 is designed for use with either a 455 kHz ceramic discriminator, or parallel LC components.

These devices also require fewer external parts than earlier products. The MC3371 and MC3372 are available in dualinline and surface mount packaging.

MC3372 Maximum Ratings

Rating
Pin
Symbol
Value
Unit
Power Supply Voltage
4
VCC(max)
10
Vdc
RF Input Voltage (VCC  4.0 Vdc)
16
V16
1.0
Vrms
Detector Input Voltage
8
V8
1.0
Vpp
Squelch Input Voltage
(VCC  4.0 Vdc)
12
V12
6.0
Vdc
Mute Function
14
V14
0.7to 10
Vpk
Mute Sink Current
14
l14
50
mA
Junction Temperature
TJ
150
°C
Storage Temperature Range
Tstg
65 to +150
°C



NOTES:
1. Devices should not be operated at these values. The "Recommended Operating Conditions" table provides conditions for actual device operation.
2. ESD data available upon request.

MC3372 Features

Wide Operating Supply Voltage Range: VCC= 2.0 to 9.0 V
Input Limiting Voltage Sensitivity of 3.0 dB
Low Drain Current: ICC= 3.2 mA, @ VCC= 4.0 V, Squelch Off
Minimal Drain Current Increase When Squelched
Signal Strength Indicator: 60 dB Dynamic Range
Mixer Operating Frequency Up to 100 MHz
Fewer External Parts Required than Earlier Devices

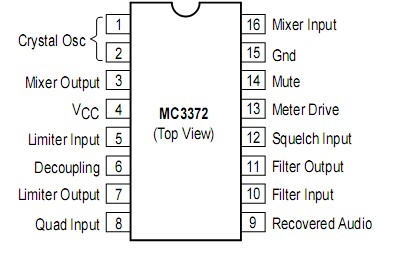

MC3372 Connection Diagram

MC3372 Connection Diagram
