MC33761
-
Suppliers
DataSheet
General Description
MC33761 Maximum Ratings
|
Rating |
Pin # |
Symbol |
Value |
Value | |
|
Min |
Max | ||||
|
Power Supply Voltage |
1 |
Vin |
− |
12 |
V |
|
ESD Capability, HBM Model |
All Pins |
− |
− |
1.0 |
kV |
|
ESD Capability, Machine Model |
All Pins |
− |
− |
200 |
V |
|
Maximum Power Dissipation NW Suffix, Plastic Package Thermal Resistance Junction−to−Air |
− |
PD RJA |
− |
Internally Limited 210 |
W °C/W |
|
Operating Ambient Temperature Maximum Junction Temperature (Note 1) Maximum Operating Junction Temperature (Note 2) |
− |
TA TJmax TJ |
− |
−40 to +85 150 125 |
°C °C °C |
|
Storage Temperature Range |
− |
Tstg |
− |
−60 to +150 |
°C |
MC33761 Features
• Ultra−Low Noise: 150 nV//Hz @ 100 Hz, 40 VRM 100 Hz−100 kHz Typical, Iout = 60 mA, Co = 1.0 F
• Fast Response Time from OFF to ON: 40 s Typical at a 200 Hz Repetition Rate
• Ready for 1.0 V Platforms: ON with a 900 mV High Level
• Nominal Output Current of 80 mA with a 100 mA Peak Capability
• Typical Dropout of 90 mV @ 30 mA, 160 mV @ 80 mA
• Ripple Rejection: 70 dB @ 1.0 kHz
• 1.5% Output Precision @ 25°C
• Thermal Shutdown
• Vout Available at 2.5 V, 2.8 V, 2.9 V, 3.0 V, 5.0 V
• Operating Range from −40 to +85°C
• Dual Version is Available as MC33762
• Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
• Fast Response Time from OFF to ON: 40 s Typical at a 200 Hz Repetition Rate
• Ready for 1.0 V Platforms: ON with a 900 mV High Level
• Nominal Output Current of 80 mA with a 100 mA Peak Capability
• Typical Dropout of 90 mV @ 30 mA, 160 mV @ 80 mA
• Ripple Rejection: 70 dB @ 1.0 kHz
• 1.5% Output Precision @ 25°C
• Thermal Shutdown
• Vout Available at 2.5 V, 2.8 V, 2.9 V, 3.0 V, 5.0 V
• Operating Range from −40 to +85°C
• Dual Version is Available as MC33762
• Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
MC33761 Typical Application
• Noise Sensitive Circuits: VCOs RF Stages, etc.
• Bursting Systems (TDMA Phones)
• All Battery Operated Devices
• Bursting Systems (TDMA Phones)
• All Battery Operated Devices

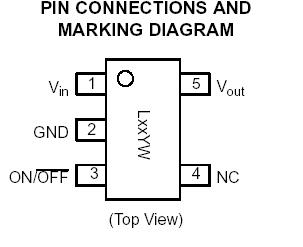

MC33761 Connection Diagram
MC33761
