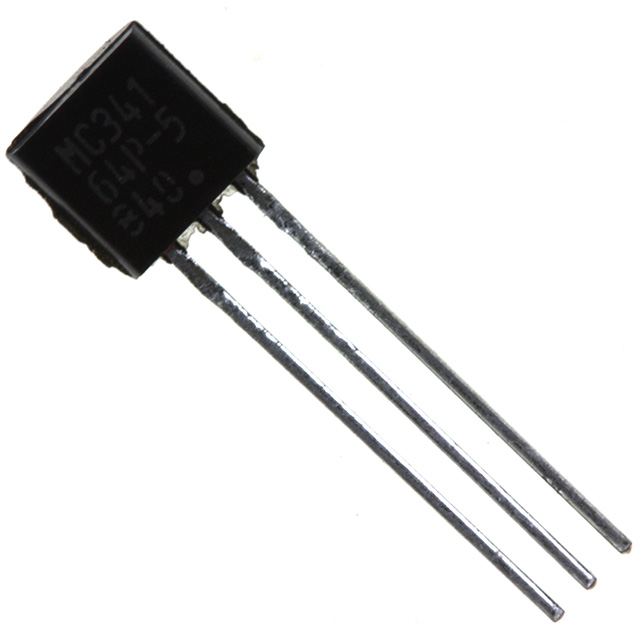

See larger image

SeekIC No. : 00583451 Detail

MC34164P-5RA: Supervisory Circuits 4.27V UnderVoltage

MC34164P-5RA Data Sheet

Get Latest Price

Part Number:: MC34164P-5RA
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC34001 evaluate
PinoutSpecifications Rating Symbol Value Unit Supply Voltage VCC, VEE ±18 V Diffe...
MC34002 evaluate
PinoutSpecifications Rating Symbol Value Unit Supply Voltage VCC, VEE ±18 V Diffe...
MC34002D evaluate
Operational Amplifiers - Op Amps USE 511-TL072CD SO-8 DUAL OP AMP

Product Details

Quick Details

Number of Voltages Monitored :	1	Monitored Voltage :	5 V
Undervoltage Threshold :	4.15 V	Overvoltage Threshold :	4.45 V
Output Type :	Open Collector / Drain	Manual Reset :	Not Resettable
Watchdog :	No Watchdog	Battery Backup Switching :	No Backup
Power-Up Reset Delay (Typ) :	Adjustable	Supply Voltage - Max :	10 V
Supply Voltage - Min :	1 V	Supply Current (Typ) :	32 uA
Maximum Power Dissipation :	700 mW	Maximum Operating Temperature :	+ 70 C
Mounting Style :	Through Hole	Package / Case :	TO-92
Packaging :	Reel

Description

Output Type : Open Collector / Drain
Manual Reset : Not Resettable
Battery Backup Switching : No Backup
Packaging : Reel
Number of Voltages Monitored : 1
Monitored Voltage : 5 V
Watchdog : No Watchdog
Supply Voltage - Min : 1 V
Supply Voltage - Max : 10 V
Mounting Style : Through Hole
Package / Case : TO-92
Power-Up Reset Delay (Typ) : Adjustable
Maximum Operating Temperature : + 70 C
Maximum Power Dissipation : 700 mW
Overvoltage Threshold : 4.45 V
Undervoltage Threshold : 4.15 V
Supply Current (Typ) : 32 uA

Parameters:

Technical/Catalog Information	MC34164P-5RA
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Output	Open Drain or Open Collector
Reset	Active Low
Package / Case	TO-92-3, TO-226AA (Formed Leads)
Packaging	Tape & Reel (TR)
Number of Voltages Monitored	1
Reset Timeout	-
Type	Simple Reset/Power-On Reset
Voltage - Threshold	4.3V
Operating Temperature	0°C ~ 70°C
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC34164P 5RA MC34164P5RA MC34164P 5RAOS ND MC34164P5RAOSND MC34164P-5RAOS
